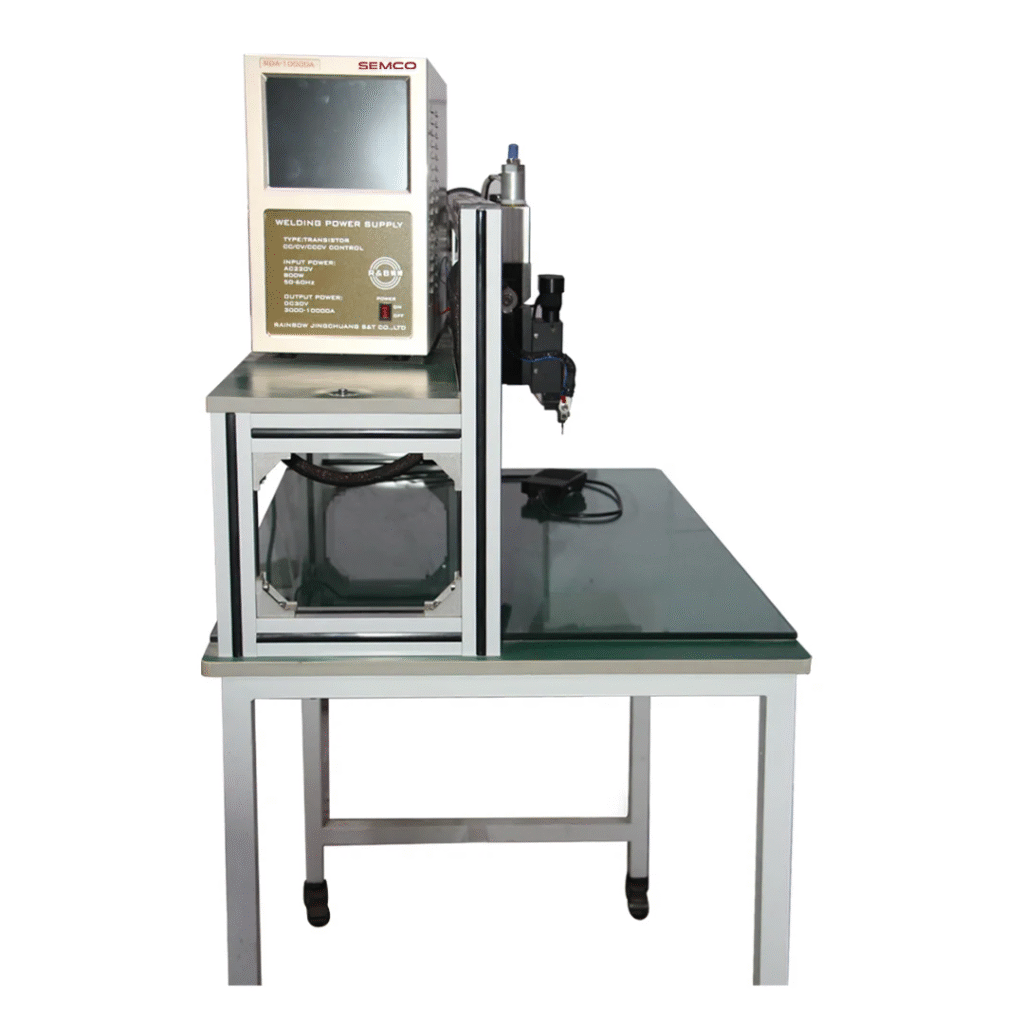

Manual Spot Welding Machine 5000A/10000A

Manual Spot welding BTW 5000A/10000A

Technical Excellence

Manual Spot welding BTW 5000A/10000A

The Manual Spot Welding Machine (BTW Series) is built with industry-leading high-frequency welding technology, reaching up to 200kHz for rapid pulse output and exceptional welding control. The fast-rising welding current enables strong, stable welds while minimizing heat impact on the workpiece.

Featuring multiple control modes—including constant current, constant voltage, and combined control—the system provides precise energy regulation for complex welding tasks. With accurate timing control, air-cooled operation, and compact form factor, the BTW series is ideal for professional battery pack welding requiring reliability, precision, and efficiency.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

Industry-leading high welding frequency up to 200kHz with powerful pulse output
Fast current rise for high-quality welding within extremely short time cycles
Multiple control modes: constant current, constant voltage, and combined control
Microsecond-level timing adjustment for precise welding process control
Compact, air-cooled design with stable performance and easy manual operation

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.

The Semco Transistor Spot Welding Power Supply (9.99kA) is a high-performance digital transistor-controlled welding power source designed for precision resistance spot welding in lithium-ion battery manufacturing. Engineered to deliver an adjustable welding output of up to 9.99kA, it provides ultra-fast current rise, precise pulse control, and exceptional welding consistency for nickel, pure nickel, copper, brass, and other conductive materials. Its high-frequency transistor control technology minimizes the heat-affected zone while producing strong, uniform welds, making it ideal for demanding battery production environments.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Specification	Description
Product Model	Semco Transistor Spot Welding Power Supply (9.99kA)
Product Type	Digital Transistor Spot Welding Power Supply
Maximum Welding Current	Up to 9.99kA
Output Voltage	Up to 30V
Input Power	Single Phase AC 200–240V, 50/60Hz
Control Technology	High-Frequency Transistor Welding Control
Control Modes	Constant Current, Constant Voltage & Combined Control
Preload Time	0–9999 ms
Rise Time	0.00–9.99 ms
Welding Time	Adjustable (0.00–9.99 ms)
Current Setting Range	000–999A / 0.00–9.99kA
Voltage Setting Range	0.00–9.99V
Monitoring Functions	Real-Time Current, Voltage, Power & Resistance Waveforms
Compatible Materials	Nickel, Pure Nickel, Copper, Brass, Aluminum & Battery Tabs
Operating Temperature	-10°C to 40°C
Relative Humidity	10%–90% RH
Applications	Precision Resistance Spot Welding for Lithium Battery Manufacturing

Product Name

Description

Manual Spot welding BTW 5000A/10000A

Product Model	Semco SI-BTW 5000A	Semco SI-BTW 1000A
Type	Standard type	Standard type
Enter the power supply	AC220V 50-60Hz	AC220V 50-60Hz
Maximum input power	400W	800W
Maximum welding current	5000A	10000A
Maximum welding voltage	125KHz	125KHz
Control mode	Constant current / constant voltage / constant current constant voltage	Constant current / constant voltage / constant current constant voltage
Preload time range	0-9999ms	0-9999ms
Slow-up time frame	0-9.9ms	0-9.9ms
Welding time frame	0-9.9ms	0-9.9ms
Mitigation time frame	0-9.9ms	0-9.9ms
Cooldown time range	0-99.9ms	0-99.9ms
Holding time range	0-9999ms	0-9999ms
Current setting range	200-5000A	200-10000A
Voltage setting range	0-10.0V	0-10.0V
Cooling method	Air cooled	Air cooled
Weight	20Kg	30Kg
Form factor	415215348mm	415215348mm

Applications

This product is used for:

Support & Warranty

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Manual Spot welding BTW 5000A/10000A”

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?

A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.

What products can be manufactured using this line?

It is used to produce battery modules, battery packs, and complete energy storage systems.

Is the assembly line fully automated?

Yes, the line supports fully or semi-automated operations based on production requirements.

Which battery types are supported?

It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.

How is product quality ensured?

In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.

Can the line be customized?

Yes, the assembly line can be customized to match specific capacity, layout, and production needs.

What safety features are included?

The system includes safety interlocks, fault detection, and controlled assembly environments.

Is the line suitable for large-scale production?

Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is Manual Spot welding BTW 5000A/10000A?

Manual Spot welding BTW 5000A/10000A is a high-performance spot welding machine designed for precision welding of battery tabs, nickel strips, and metal components in battery pack manufacturing. It uses high current output (5000A/10000A) to create strong and reliable weld joints for lithium-ion battery assembly and industrial applications.

What is the purpose of Manual Spot welding BTW 5000A/10000A?

The primary purpose of Manual Spot welding BTW 5000A/10000A is to provide accurate and durable welding for battery cells and conductive materials. It helps manufacturers achieve strong electrical connections, reduce welding defects, and improve overall battery pack reliability and performance.

Which industries use Manual Spot welding BTW 5000A/10000A?

Manual Spot welding BTW 5000A/10000A is widely used in industries such as lithium-ion battery manufacturing, electric vehicles (EV), battery energy storage systems (BESS), electronics, automotive, metal fabrication, and industrial battery assembly facilities.

What materials can be welded using Manual Spot welding BTW 5000A/10000A?

Manual Spot welding BTW 5000A/10000A is commonly used for welding nickel strips, nickel-plated steel, copper, aluminum connections, battery tabs, and conductive metal materials used in battery pack manufacturing and industrial assembly.

Why is spot welding important in battery manufacturing?

Spot welding using Manual Spot welding BTW 5000A/10000A is important because it creates strong and low-resistance electrical connections between battery cells and conductive strips. Proper welding improves battery safety, conductivity, durability, and overall pack performance while reducing failure risks.

What are the key features of Manual Spot welding BTW 5000A/10000A?

Manual Spot welding BTW 5000A/10000A typically includes high current output (5000A/10000A), precise welding control, adjustable welding parameters, durable electrode systems, stable welding performance, user-friendly operation, and reliable weld quality for industrial applications.

Can Manual Spot welding BTW 5000A/10000A be customized?

Yes, Manual Spot welding BTW 5000A/10000A can be customized based on welding requirements, material thickness, battery cell type, electrode configuration, automation compatibility, and specific production needs.

Why choose Semco Infratech for Manual Spot welding BTW 5000A/10000A?

Semco Infratech provides reliable Manual Spot welding BTW 5000A/10000A solutions designed for precision battery welding and industrial manufacturing. With expertise in lithium-ion battery machinery, advanced engineering support, and customization capabilities, Semco helps manufacturers improve weld quality, production efficiency, and battery reliability.
