CCS Automatic Production Line | Cell Contact System Assembly

CCS Automatic Production Line

Technical Excellence

CCS Automatic Production Line

Product Overview

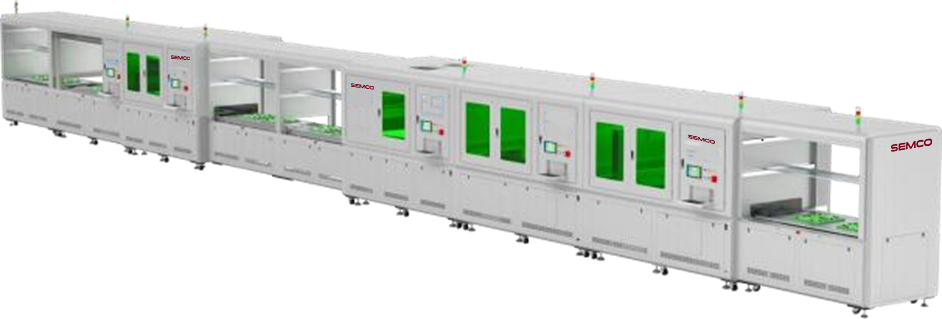

The Automation Production Line for Battery Module CCS is a high-precision, fully integrated manufacturing solution designed for efficient assembly, welding, inspection, and testing of battery module CCS systems. The line combines advanced automation, laser welding, hot riveting, and intelligent inspection technologies to ensure high productivity, accuracy, and reliability.

This system is ideal for EV battery manufacturers, energy storage system providers, and lithium-ion battery module assembly facilities seeking scalable and high-quality production.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

Fully integrated CCS module assembly line
High-precision laser welding with ≥98% yield
Automatic pulse heat riveting system
Advanced AOI visual inspection (up to 100% detection accuracy)
Comprehensive electrical performance testing (AC/DC high voltage)

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.

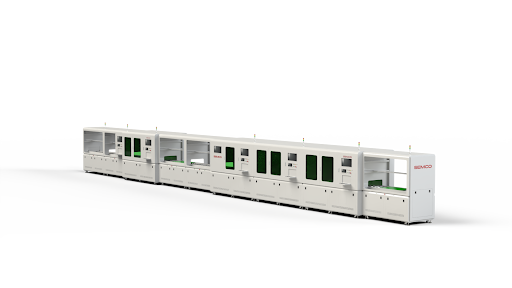

The CCS Automatic Production Line is a fully automated manufacturing solution designed for the precision assembly of Cell Contact System (CCS) battery modules used in electric vehicles (EVs) and Battery Energy Storage Systems (BESS). The production line integrates advanced processes including automatic feeding, laser welding, pulse heat riveting, AOI visual inspection, and electrical performance testing to deliver consistent product quality and high production efficiency. With intelligent automation and real-time quality monitoring, it enables manufacturers to achieve reliable, scalable, and cost-effective battery module production.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

The CCS Automatic Production Line combines high-precision laser welding, automated riveting, intelligent visual inspection, and comprehensive electrical testing into a single integrated system. Designed for high-volume manufacturing, it ensures superior welding quality, accurate assembly, high production yield, and reliable performance for lithium-ion battery module Cell Contact Systems.

Product Name

Description

CCS Automatic Production Line

Category	Parameter	Specification
General	Product Name	Automation Production Line for Battery Module CCS
	Application	CCS Assembly for Lithium-ion Battery Modules
	Total Line Dimensions	21.0m × 1.8m × 2.2m
	Carrier Plate Size	2000mm × 800mm
	Working Height	900 mm
	Load Capacity	200 kg per station
	Transfer Speed	20 m/min
	Control System	PLC + Industrial PC
	Power Supply	220V / 50Hz
	Conveyor Type	Double-layer conveying system
Hot Riveting	Machine Type	Pulse Heat Riveting Machine
	Rivet Heads	12 Heads
	Positioning Accuracy	≤ ±0.05 mm
	Cycle Time	~10 sec per point
	Temperature Control	Independent nozzle control with monitoring
Laser Welding	Machine Type	Laser Beam Welding Machine
	Laser Source	1000W Single Mode (Raycus)
	Welding Yield	≥ 98%
	Positioning Accuracy	≤ ±0.05 mm
	Focus Accuracy	±0.1 mm (Auto)
	Welding Capability	Linear, Circular, Spiral, Multi-point
	Vision System	CCD alignment system
Electrical Testing	Testing Points	512 Points
	AC Voltage	1000V
	DC Voltage	1500V
	Test Parameters	Voltage, Resistance, Insulation, Continuity, NTC
	Power Consumption	3.0 kW
AOI Inspection	Inspection Type	AOI Visual Inspection
	Detection Range	2000mm × 800mm
	Camera Resolution	≥ 20 μm
	Positioning Accuracy	≥ 0.05 mm
	Detection Capability	Welding defects, missing parts, rivet defects
	Detection Accuracy	Up to 100%
Workstations	Tray Loading Station	2.8m × 1.5m × 2.2m
	FPC Installation Station	3.3m × 1.5m × 2.2m
	Hot Riveting Station	3.3m × 1.8m × 2.2m
	Laser Welding Station	3.3m × 1.8m × 2.2m
	Electrical Testing Station	3.3m × 1.8m × 2.2m
	AOI Inspection Station	3.3m × 1.8m × 2.2m
	Material Cutting Station	2.5m × 1.5m × 2.2m
Components	PLC	Inovance / HuiChuan
	Industrial PC	Advantech (i7 / 16GB / 1TB)
	Servo Motors	HuiChuan
	Laser Source	Raycus
	Vision System	CCD 12MP
	Cooling System	Hanli Dual Temperature
	Display	Dell 22”

Applications

This product is used for:

Support & Warranty

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “CCS Automatic Production Line”

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?

A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.

What products can be manufactured using this line?

It is used to produce battery modules, battery packs, and complete energy storage systems.

Is the assembly line fully automated?

Yes, the line supports fully or semi-automated operations based on production requirements.

Which battery types are supported?

It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.

How is product quality ensured?

In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.

Can the line be customized?

Yes, the assembly line can be customized to match specific capacity, layout, and production needs.

What safety features are included?

The system includes safety interlocks, fault detection, and controlled assembly environments.

Is the line suitable for large-scale production?

Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a CCS Automatic Production Line?

A CCS Automatic Production Line is an advanced automated manufacturing system designed for the production and assembly of Cell Contact Systems (CCS) used in lithium-ion battery packs and electric vehicle (EV) batteries. It streamlines processes such as welding, inspection, assembly, and testing to improve production efficiency and consistency.

What is the purpose of a CCS Automatic Production Line?

The main purpose of a CCS Automatic Production Line is to automate the manufacturing of battery cell contact systems with high precision and speed. It helps manufacturers reduce manual labor, improve production accuracy, increase throughput, and maintain consistent product quality in battery pack assembly.

Which industries use a CCS Automatic Production Line?

A CCS Automatic Production Line is widely used in industries such as lithium-ion battery manufacturing, electric vehicles (EV), battery energy storage systems (BESS), renewable energy, automotive, and advanced electronics where battery pack connectivity and efficiency are critical.

What processes are included in a CCS Automatic Production Line?

A CCS Automatic Production Line typically includes processes such as material feeding, precision welding, busbar assembly, adhesive dispensing, laser marking, automated inspection, electrical testing, quality control, and final assembly to ensure reliable battery performance.

Why is automation important in a CCS Automatic Production Line?

Automation in a CCS Automatic Production Line is important because it improves production speed, minimizes human error, ensures high precision, reduces material waste, and delivers consistent quality. It also helps manufacturers meet high-volume production demands efficiently.

What are the key features of a CCS Automatic Production Line?

A CCS Automatic Production Line generally includes automated material handling, precision welding systems, intelligent control software, real-time monitoring, quality inspection systems, modular design, high production efficiency, and customizable automation features.

Can a CCS Automatic Production Line be customized?

Yes, a CCS Automatic Production Line can be customized according to battery type, production capacity, product dimensions, automation level, process requirements, and specific manufacturing standards to match industrial production needs.

Why choose Semco Infratech for a CCS Automatic Production Line?

Semco Infratech provides advanced CCS Automatic Production Line solutions designed for high-precision battery manufacturing and industrial automation. With expertise in lithium-ion battery equipment, customized engineering, and end-to-end technical support, Semco helps manufacturers improve efficiency, quality, and production scalability. Select 58 more words to run Humanizer.
