Strip Heat Shrink Furnace

Technical Excellence

The Semco Strip Heat Shrink Furnace (SI-JG-HSF) is an industrial tunnel furnace designed for controlled heating and continuous processing of compatible strip-type components and heat-shrink materials. Equipped with a conveyor-based heating system, infrared heating tubes, and automatic temperature control, the machine supports consistent thermal processing for suitable industrial and battery manufacturing applications.

The furnace features an adjustable temperature range from ambient temperature to 250°C, with a PID-based digital temperature controller that regulates heating output according to the selected temperature. Its Teflon mesh conveyor belt facilitates material movement through the heating zone, while the insulated enclosure is designed to support thermal retention and stable operating conditions.

Designed for industrial production environments, the Strip Heat Shrink Furnace combines controlled heating, conveyor operation, and an industrial-grade enclosure to support repeatable processing workflows. It can be evaluated for battery assembly and heat-shrink applications based on material specifications, component dimensions, and process requirements.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

  • Conveyor-Based Tunnel Furnace: Supports continuous movement of compatible components through the heating zone
  • Adjustable Temperature Range: Operating temperature adjustable from ambient temperature to 250°C
  • PID Temperature Control: Automatically regulates heating output to maintain the selected temperature
  • Infrared Heating Elements: Designed for rapid heat generation and effective heat distribution
  • Digital Temperature Display: Yudian digital controller with dual PV/SV display for monitoring actual and set temperatures

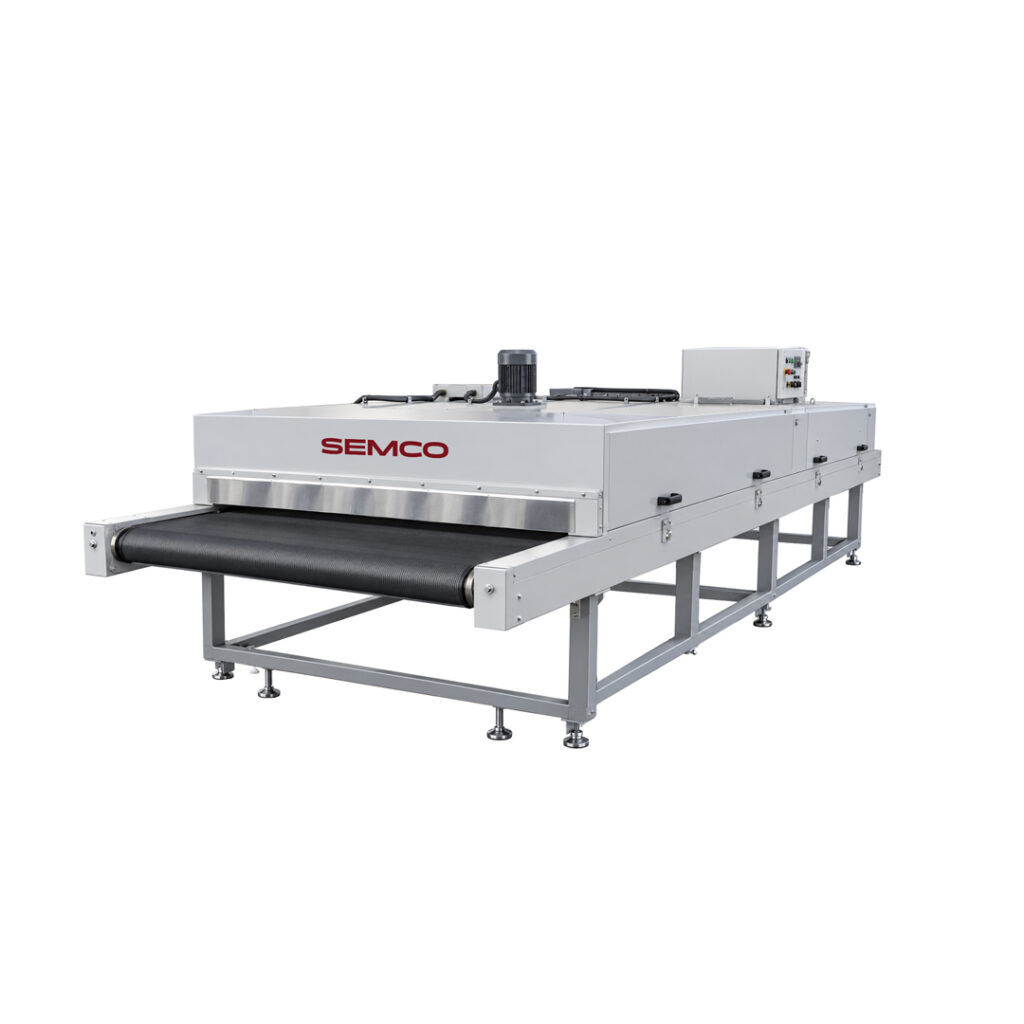

Semco Strip Heat Shrink Furnace

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.
The Semco Strip Heat Shrink Furnace (SI-JG-HSF) is an industrial heating solution designed for controlled, continuous heat processing of strip-type components and compatible heat-shrink materials used in battery manufacturing and electrical assembly applications. Featuring a conveyor-based tunnel furnace design, the system enables components to pass through a controlled heating zone for consistent and repeatable thermal processing. Equipped with infrared heating elements and a digital temperature control system, the Semco Heat Shrink Furnace provides an adjustable operating temperature from ambient temperature up to 250°C. Its PID-based automatic temperature control continuously regulates heating output according to the selected temperature, helping maintain stable processing conditions. The specified temperature fluctuation is within ±1°C, while temperature uniformity is specified at ±3°C under no-load conditions.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Parameter Specification
Product Name Semco Strip Heat Shrink Furnace
Model Number SI-JG-HSF
Equipment Type Tunnel Furnace
External Dimensions 5000 × 1340 × 1500 mm
Working Length 4000 mm
Inner Width 1100 mm
Temperature Range Ambient temperature to 250°C
Temperature Fluctuation ≤ ±1°C
Temperature Uniformity ≤ ±3°C (no-load condition)
Heating Rate ≤ 8°C/min
Conveyor Belt Teflon mesh belt
Heating System Infrared heating tubes
Temperature Controller Yudian digital controller with PV/SV display
Temperature Sensor Type-K thermocouple
Temperature Regulation PID automatic control
Total Power Approximately 30 kW
Power Supply Three-phase AC 380V ±10%
Frequency 50 ±1 Hz
Ambient Temperature -5°C to +40°C
Relative Humidity ≤85% RH
Thermal Insulation 100 mm high-density aluminium silicate rock wool
Inner Liner 1.0 mm galvanized steel sheet
Outer Enclosure Cold-rolled steel sheet
Safety Feature Structural electrical grounding protection

Product Name

Description

Applications

This product is used for:

  • Lithium-ion battery assembly and production units
  • EV battery manufacturing facilities
  • QC and testing labs
  • R&D facilities
  • OEM and contract manufacturing plants
  • Heat-shrink sleeve processing in battery manufacturing.
  • Battery pack assembly and insulation-related production processes.
  • Thermal processing of compatible strip-type components.
  • Electrical component manufacturing and assembly.
  • Conveyor-based industrial heating operations.
  • Battery module and pack production workflows.

Support & Warranty

  • Equipment installation and commissioning assistance.
  • Operator training and operating guidance.
  • Temperature controller configuration support.
  • Preventive maintenance recommendations.
  • Technical troubleshooting and after-sales assistance.
  • Guidance on conveyor operation and cleaning.

Reviews

There are no reviews yet.

Be the first to review “Strip Heat Shrink Furnace”

Your email address will not be published. Required fields are marked *

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?
A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.
It is used to produce battery modules, battery packs, and complete energy storage systems.
Yes, the line supports fully or semi-automated operations based on production requirements.
It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.
How is product quality ensured?
In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.
Yes, the assembly line can be customized to match specific capacity, layout, and production needs.
The system includes safety interlocks, fault detection, and controlled assembly environments.
Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

A Strip Heat Shrink Furnace is an industrial heating system designed to process compatible strip-type components and heat-shrink materials under controlled temperature conditions. A conveyor moves the material through a heated tunnel to support continuous thermal processing.
The Semco SI-JG-HSF is a conveyor-based tunnel furnace intended for controlled industrial heating. It can be evaluated for heat-shrink processing and compatible battery assembly applications based on the material and process requirements.
The specified adjustable temperature range extends from ambient temperature up to 250°C, allowing operators to select the required temperature for compatible materials and applications.
Yes. The machine uses a digital temperature controller with PID-based automatic regulation. The controller adjusts heating output according to the selected temperature to help maintain stable operating conditions.
The furnace uses infrared heating tubes designed to provide rapid heat generation and effective heat distribution within the heating chamber.
The supplied specification lists temperature fluctuation of ≤ ±1°C and temperature uniformity of ≤ ±3°C under no-load conditions. Actual performance under production load may depend on operating conditions and material characteristics.
