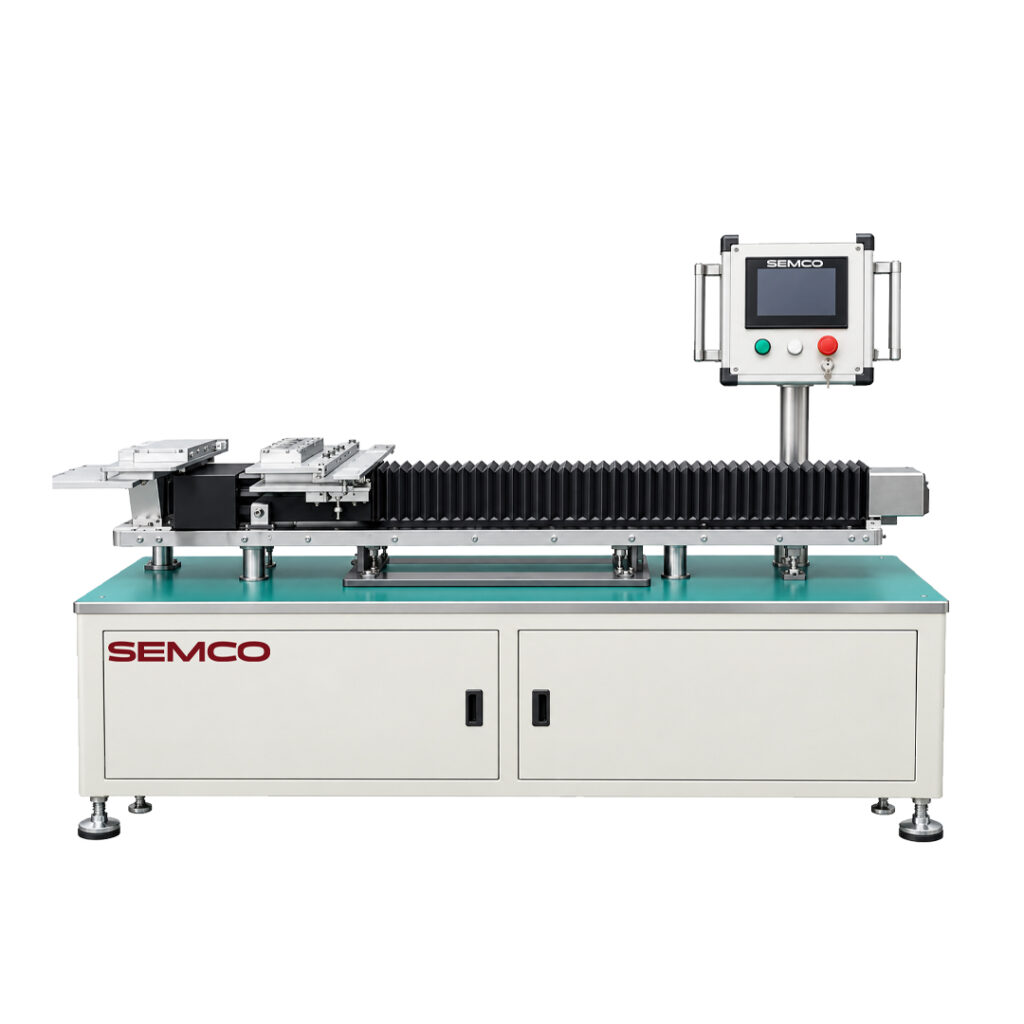

Steel Strip Finished Product Length Inspection Machine

Technical Excellence

The Semco Steel Strip Finished Product Length Inspection Machine (SI-JG-NSLM) is an industrial measurement and quality inspection system designed to accurately measure the length of finished steel strips during manufacturing. Developed for applications requiring precise dimensional verification, the machine combines precision-engineered mechanical components, servo-driven feeding, and automated length measurement to support consistent inspection and efficient production workflows.

The machine offers a specified length measurement accuracy of 0.01 mm and supports compatible steel strips ranging from 350 mm to 1300 mm in length. Its servo motor-driven feeding mechanism is designed to provide smooth movement, low operating noise, and repeatable positioning during inspection.

Built for industrial production environments, the Steel Strip Finished Product Length Inspection Machine helps manufacturers improve dimensional quality control, reduce dependence on manual measurement, and identify length deviations during production. With a specified cycle time of one piece per 8.5 seconds or less, the system is designed to support efficient inspection processes.

Its compact layout, industrial construction, and defined operating requirements make it suitable for integration into compatible steel strip manufacturing and processing workflows. By combining precision measurement with repeatable operation, the Semco SI-JG-NSLM helps manufacturers strengthen inspection consistency, improve productivity, and maintain finished-product quality.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

  • High-Precision Length Measurement: Specified measurement accuracy of 0.01 mm for dimensional inspection
  • Servo-Driven Feeding System: High-resolution servo motor supports smooth feeding and repeatable movement
  • Efficient Inspection Cycle: Specified cycle time of one piece per 8.5 seconds or less
  • Wide Measurement Range: Supports compatible steel strips from 350 mm to 1300 mm in length
  • Precision Mechanical Construction: High-quality steel components manufactured through precision machining
Steel Strip Finished Product Length Inspection Machine

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.
The **Semco Steel Strip Finished Product Length Inspection Machine (SI-JG-NSLM)** is an automated inspection solution designed to measure and verify the length of finished steel strips with high precision. Engineered for industrial production environments, the machine features a servo-driven feeding system and precision-machined mechanical components to support stable operation, repeatable measurements, and efficient quality control. With a specified length measurement accuracy of 0.01 mm and a cycle time of up to one piece per 8.5 seconds, the machine helps manufacturers improve dimensional consistency, reduce manual inspection effort, and maintain reliable production quality.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Parameter Specification
Product Name Steel Strip Finished Product Length Inspection Machine
Model Semco SI-JG-NSLM
Equipment Type Automatic Length Inspection Machine
Layout Dimensions (L × W × H) 1750 × 670 × 1700 mm
Compatible Strip Length 350–1300 mm
Compatible Strip Width 140–450 mm
Compatible Strip Thickness 1–2 mm
Length Measurement Accuracy 0.01 mm
Specified Cycle Time ≤1 piece/8.5 seconds
Feeding System High-resolution servo motor
Power Supply 220/380 V, 50 Hz, as specified in the equipment document
Compressed Air Pressure 0.5–0.7 MPa
Standard Appearance Color RAL 9003 Signal White

Product Name

Description

Applications

This product is used for:

  • Lithium-ion battery assembly and production units
  • EV battery manufacturing facilities
  • QC and testing labs
  • R&D facilities
  • OEM and contract manufacturing plants
  • Finished steel strip length inspection.
  • Dimensional quality control in steel strip manufacturing.
  • Length verification after steel strip processing.
  • Inspection of compatible metal strips and components.
  • Automated measurement in industrial production lines.
  • Quality assurance for precision-engineered strip products.
  • Production inspection for metalworking and fabrication facilities.

Support & Warranty

  • Machine installation and commissioning assistance.
  • Operator training and operating guidance.
  • Technical support for measurement setup.
  • Assistance with inspection-process configuration.
  • Preventive maintenance guidance.

Reviews

There are no reviews yet.

Be the first to review “Steel Strip Finished Product Length Inspection Machine”

Your email address will not be published. Required fields are marked *

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?
A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.
It is used to produce battery modules, battery packs, and complete energy storage systems.
Yes, the line supports fully or semi-automated operations based on production requirements.
It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.
How is product quality ensured?
In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.
Yes, the assembly line can be customized to match specific capacity, layout, and production needs.
The system includes safety interlocks, fault detection, and controlled assembly environments.
Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

A Steel Strip Finished Product Length Inspection Machine is industrial equipment used to measure and verify the length of finished steel strips. It helps manufacturers perform dimensional quality checks and maintain consistency across production batches.
The Semco SI-JG-NSLM is designed for finished steel strip length inspection. It uses a servo-driven feeding mechanism and precision-engineered mechanical components to support repeatable measurement and efficient inspection.
The machine's specified length measurement accuracy is 0.01 mm, supporting precise dimensional inspection of compatible steel strips.
The supplied specifications list a compatible length range of 350–1300 mm, width of 140–450 mm, and thickness of 1–2 mm.
The specified overall line cycle time is one piece per 8.5 seconds or less. Actual performance may depend on the inspection setup and production conditions.
Yes. The specification identifies a high-resolution servo motor in the feeding component, designed to provide smooth operation, low noise, and repeatable movement.
Automated inspection can reduce manual measurement effort, improve repeatability, support faster quality checks, and help identify dimensional deviations during production.
Potential applications include steel strip processing, metal fabrication, precision component manufacturing, and industrial production environments that require finished-strip dimensional verification.
Semco
A Steel Strip Finished Product Length Inspection Machine is industrial equipment used to measure and verify the length of finished steel strips. It helps manufacturers perform dimensional quality checks and maintain consistency across production batches.
The Semco SI-JG-NSLM is designed for finished steel strip length inspection. It uses a servo-driven feeding mechanism and precision-engineered mechanical components to support repeatable measurement and efficient inspection.
The machine's specified length measurement accuracy is 0.01 mm, supporting precise dimensional inspection of compatible steel strips.
The supplied specifications list a compatible length range of 350–1300 mm, width of 140–450 mm, and thickness of 1–2 mm.
The specified overall line cycle time is one piece per 8.5 seconds or less. Actual performance may depend on the inspection setup and production conditions.
Yes. The specification identifies a high-resolution servo motor in the feeding component, designed to provide smooth operation, low noise, and repeatable movement.
Automated inspection can reduce manual measurement effort, improve repeatability, support faster quality checks, and help identify dimensional deviations during production.
Potential applications include steel strip processing, metal fabrication, precision component manufacturing, and industrial production environments that require finished-strip dimensional verification.
