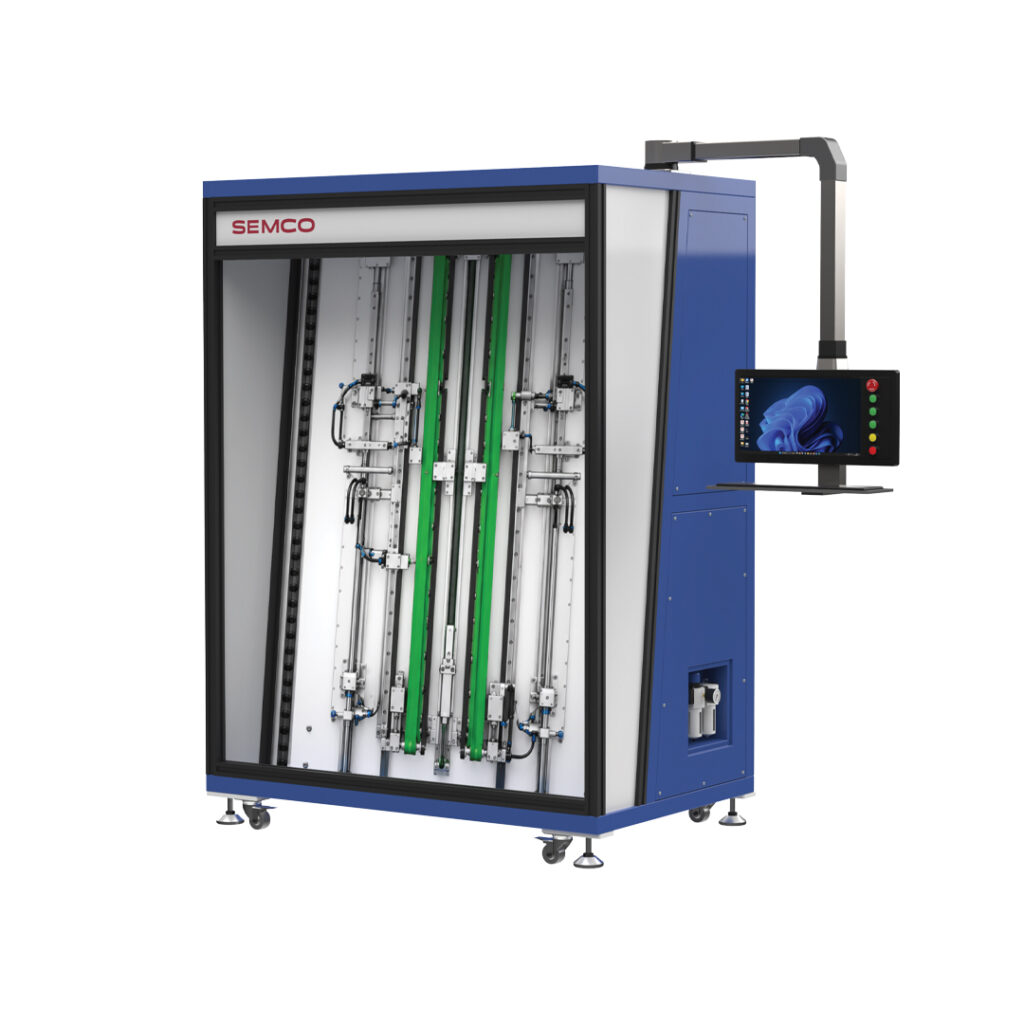

Heat Shrink Tube Pressure Testing Machine

Technical Excellence

The Semco Heat Shrink Tube Pressure Testing Machine is a precision testing system designed to evaluate the withstand pressure, insulation resistance, and electrical safety performance of heat shrink tubes and protective sleeves used in battery packs and electrical assemblies.

Designed for battery manufacturing and quality-control applications, the machine combines an automated pressure testing mechanism with a high-voltage withstand voltage tester to provide reliable and repeatable testing results.

The system can automatically determine the withstand pressure performance of the tested casing and display the measured values through the equipment interface. Measurement data can also be stored locally, while the industrial computer provides an interface for future MES data upload and production-data transmission.

With integrated safety features, including a safety light curtain and emergency stop button, the equipment is designed to support safer operation during production and testing.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

  • Automatic withstand pressure testing for heat shrink tube/casing applications
  • Automatic determination of casing withstand pressure
  • Digital display of measured testing values
  • Integrated withstand voltage testing system
  • Supports AC and DC withstand voltage testing
Heat Shrink Tube Pressure Testing Machine

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.
The Semco Heat Shrink Tube Pressure Testing Machine (SI-JG-HSTP) is an advanced testing solution designed to support quality inspection and electrical safety testing in battery manufacturing and industrial electrical applications. The machine integrates an automated withstand pressure testing mechanism with a high-voltage testing system to help manufacturers evaluate the electrical insulation performance of heat shrink tubes, protective casings, and compatible components. Engineered for battery pack assembly and quality control environments, the system supports AC withstand voltage testing, DC withstand voltage testing, and insulation resistance measurement. It automatically determines the withstand pressure performance of the tested casing and displays the measured values, helping operators perform testing more consistently and efficiently.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Category Parameter Specification
Product Model Semco SI-JG-HSTP
Equipment Product Type Heat Shrink Tube Pressure Testing Machine
Overall Equipment Layout Dimensions 1350 × 900 × 2050 mm
Basic Machine Dimensions L × W × H 2100 × 1000 × 2500 mm (with operation box)
Power Supply Input Voltage 220V, 50Hz
Power Power Consumption 6 kW
Compressed Air Air Pressure 0.5 MPa
Air Consumption Consumption 100 L/min
Noise Level Equipment Noise ≤70 dB
Tester Withstand Voltage Tester Tonghui TH9320
AC Withstand Voltage Test Range 0.05–5.000 kV
AC Current Range 0.001–20.000 mA
DC Withstand Voltage Test Range 0.05–6.000 kV
DC Current Range 0.0001–10.000 mA
Insulation Resistance Measurement Range 0.1 MΩ–10 GΩ
Insulation Test Voltage Voltage 0.1 kV
Data Management Local Storage Supported
MES Interface Data Transmission Interface reserved
Safety Safety Light Curtain Included
Emergency Protection Emergency Stop Included

Product Name

Description

Applications

This product is used for:

  • Lithium-ion battery assembly and production units
  • EV battery manufacturing facilities
  • QC and testing labs
  • R&D facilities
  • OEM and contract manufacturing plants
  • Lithium-ion battery pack manufacturing
  • EV battery manufacturing
  • Battery module assembly
  • Battery Energy Storage System (BESS) manufacturing
  • Battery pack electrical insulation testing
  • Heat shrink tube quality inspection
  • Battery cable and electrical connection assemblies
  • Battery protection sleeve testing

Support & Warranty

  • Professional machine installation and commissioning
  • Equipment operation and maintenance training
  • Operator training and technical guidance
  • Production-line integration support
  • Assistance with machine parameter configuration
  • Process optimization support

Reviews

There are no reviews yet.

Be the first to review “Heat Shrink Tube Pressure Testing Machine”

Your email address will not be published. Required fields are marked *

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?
A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.
It is used to produce battery modules, battery packs, and complete energy storage systems.
Yes, the line supports fully or semi-automated operations based on production requirements.
It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.
How is product quality ensured?
In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.
Yes, the assembly line can be customized to match specific capacity, layout, and production needs.
The system includes safety interlocks, fault detection, and controlled assembly environments.
Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

A Heat Shrink Tube Pressure Testing Machine is industrial testing equipment used to evaluate the withstand pressure and electrical insulation performance of compatible heat shrink tubes, protective casings, and related components. It helps manufacturers perform quality checks during battery and electrical assembly processes.
The Semco SI-JG-HSTP is designed for automated withstand pressure testing of casings, supported by an integrated electrical testing system. It can be used in battery manufacturing and quality-control environments where insulation performance needs to be evaluated.
The machine supports AC withstand voltage testing, DC withstand voltage testing, and insulation resistance measurement. The specified tester ranges are 0.05–5.000 kV for AC withstand voltage, 0.05–6.000 kV for DC withstand voltage, and 0.1 MΩ–10 GΩ for insulation resistance.
Yes. The equipment's withstand pressure testing mechanism automatically determines the casing's withstand pressure performance and displays the measured value.
Yes. The industrial computer includes a reserved interface for MES data upload and transmission. Measurement data can also be stored locally. Actual integration requirements should be confirmed with the Semco technical team.
The specified electrical supply is 220 V, 50 Hz, with a rated power requirement of 6 kW. The compressed-air requirement is 0.5 MPa, with air consumption of 100 L/min.
