Battery Charge & Discharge Cabinet

Technical Excellence

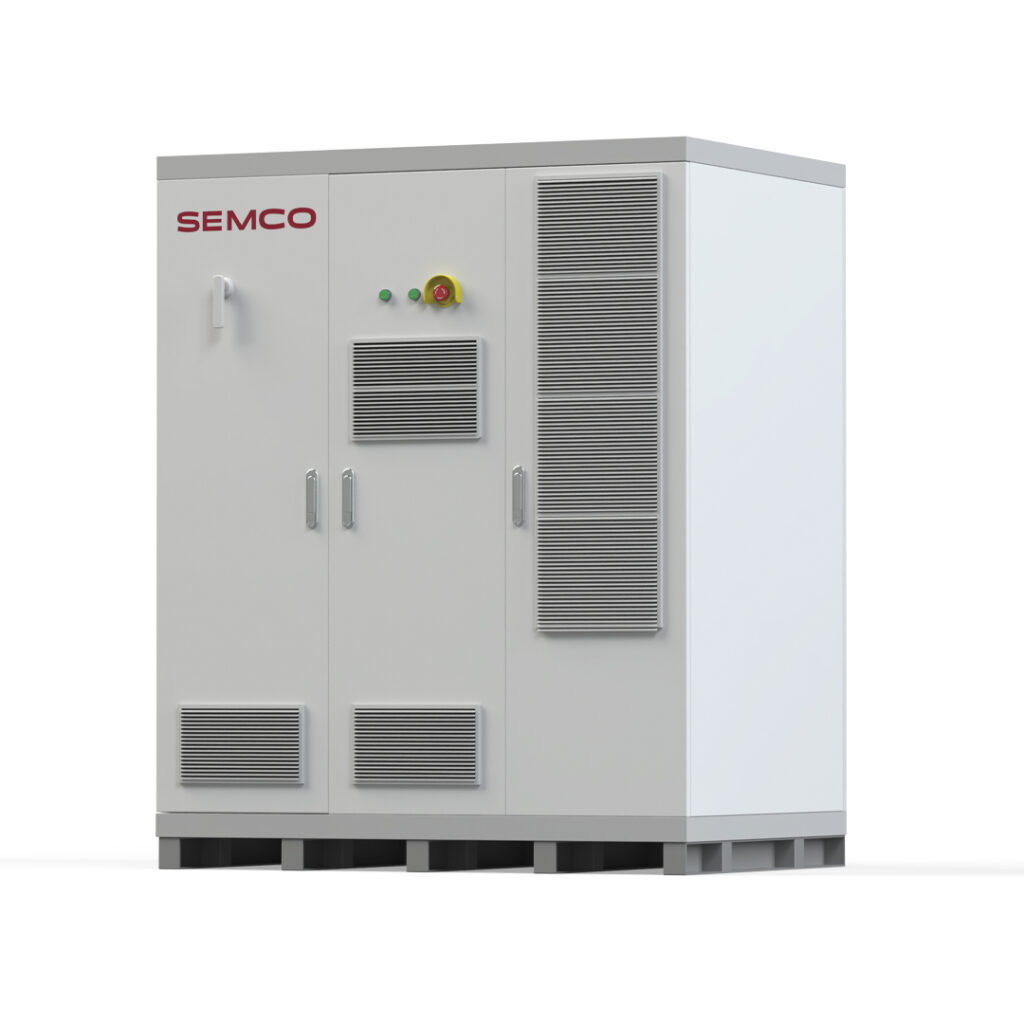

The Battery Charge & Discharge Cabinet is a high-performance battery testing system designed for testing battery cells, modules, packs and large battery clusters used in electric vehicles and energy storage applications. The SI-MS BCDS 1650V 500A 4CH-1000kW model combines programmable charge and discharge capabilities with advanced testing software to support battery performance evaluation, cycle life analysis and operating condition simulation.

With a specified voltage range of 80–1650V and four testing channels, the system supports a range of battery testing requirements. It enables constant current, constant power, constant voltage and pulse-based charging and discharging, along with programmable operating condition simulation. These functions help manufacturers evaluate battery performance under different testing conditions and collect detailed information throughout the test process.

The integrated Semco testing software records parameters such as voltage, current, power, temperature, charging capacity and discharging capacity at a specified data recording interval of 10 milliseconds. Recorded data can be stored in a MySQL database, reviewed through graphical analysis and exported in formats such as Excel. The software also supports cycle life testing, capacity testing, DCR testing, rate testing, temperature characteristic testing and state-of-charge (SOC) adjustment.

Semco Battery Charge & Discharge Cabinet includes battery protection functions such as overvoltage, undervoltage, overcurrent, overcharge, over-discharge, temperature and individual cell voltage protection. Its software supports Battery Management System (BMS) communication through CAN, DBC file import and configurable testing conditions. These features help users monitor test parameters and configure test procedures according to their requirements.

The system also features energy feedback technology, with a specified maximum conversion efficiency above 96%, allowing more than 96% of discharged energy to be fed back to the grid under the stated operating conditions. This supports energy-efficient battery testing and can help reduce the energy consumed during repeated testing cycles. Designed for battery manufacturing, performance validation and energy storage testing environments, the Semco SI-MS BCDS provides a configurable platform for evaluating battery performance, collecting test data and assessing battery behaviour across different operating conditions.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

  • High-Voltage Battery Testing: Supports a battery-side voltage range of 80–1650V.
  • Four Testing Channels: Features four battery testing channels for configured testing applications.
  • Programmable Charging and Discharging: Supports constant current, constant voltage, constant power and pulse testing modes.
  • High-Precision Measurement: Specifies voltage and current detection accuracy of ±0.5‰ FS.
  • Energy Feedback Technology: Provides maximum device conversion efficiency above 96%.
Battery Charge & Discharge Cabinet

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.
The Semco Battery Charge & Discharge Cabinet (SI-MS BCDS 1650V 500A 4CH-1000kW) is an advanced battery testing system designed for battery packs, modules, cells and large battery clusters. It supports charge and discharge testing, capacity testing, DC resistance (DCR) testing, cycle life testing and operating condition simulation for electric vehicle (EV) and energy storage batteries. With a voltage range of 80–1650V, four testing channels, high-precision measurements and energy feedback efficiency above 96%, the system provides detailed battery performance data for manufacturing, validation and testing applications.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Parameter Specification
Product model SI-MS BCDS 1650V 500A 4CH-1000kW
Equipment type Battery Charge & Discharge Cabinet
Number of channels 4
Rated power Single channel: 500 kW; total: 1000 kW, as stated in the source
Battery-side voltage range 80–1650 V
Current range −500 A to +500 A per channel
Voltage detection accuracy ±0.5‰ FS
Current detection accuracy ±0.5‰ FS
Rated grid voltage 415 V ±10%
Rated grid frequency 50 Hz ±1.5 Hz
Power factor at rated power >0.99
Total harmonic current distortion (THDi) 96%
Current rise time ≤5 ms (10%–90% of current range)
Current conversion time ≤10 ms (−90% to +90% of current range)
Data recording interval 10 ms
Minimum working step 50 ms
Maximum programmable steps 9,999
Maximum number of cycles 9,999
Data storage MySQL database
Communication interface CAN
Cooling method Air cooling
Protection level IP20
Operating temperature 0°C to +40°C
Computer configuration Optional/additional cost: i7, 16 GB RAM, 1 TB SSD, 21.5-inch LCD display, 8 CAN ports
Power testing lines 4 sets, copper terminals, 5 m
Software Semco charge and discharge tester control software

Product Name

Description

Applications

This product is used for:

  • Lithium-ion battery assembly and production units
  • EV battery manufacturing facilities
  • QC and testing labs
  • R&D facilities
  • OEM and contract manufacturing plants
  • Electric Vehicle Battery Testing: Evaluates battery performance and operating behaviour for EV battery systems.
  • Energy Storage Battery Testing: Supports testing of batteries used in energy storage applications.
  • Battery Pack Testing: Performs charge and discharge tests on battery packs.
  • Battery Module Testing: Supports performance evaluation of battery modules.
  • Battery Cell Testing: Enables configured charge, discharge and capacity tests for battery cells.
  • Battery Capacity Testing: Measures charging and discharging capacity under programmed test conditions.
  • DC Resistance Testing: Supports DCR testing to assess battery electrical characteristics.

Support & Warranty

  • Technical Assistance: Contact Semco for queries regarding equipment operation, testing capabilities and configuration.
  • Installation Guidance: Confirm electrical supply, cooling, site conditions and installation requirements with the technical team.
  • Software Support: Seek assistance with test configuration, data analysis, test-step programming and software operation.
  • BMS Communication Support: Discuss CAN communication, DBC imports and BMS integration requirements.
  • Maintenance Guidance: Consult Semco for recommended maintenance and operating procedures.
  • Spare Parts Enquiries: Contact the team to check compatible replacement components and availability.
  • Warranty Information: Request confirmation of the applicable warranty duration, coverage and service terms.

Reviews

There are no reviews yet.

Be the first to review “Battery Charge & Discharge Cabinet”

Your email address will not be published. Required fields are marked *

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?
A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.
It is used to produce battery modules, battery packs, and complete energy storage systems.
Yes, the line supports fully or semi-automated operations based on production requirements.
It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.
How is product quality ensured?
In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.
Yes, the assembly line can be customized to match specific capacity, layout, and production needs.
The system includes safety interlocks, fault detection, and controlled assembly environments.
Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

A Battery Charge & Discharge Cabinet is a testing system that charges and discharges batteries under programmed conditions to evaluate parameters such as voltage, current, capacity, temperature and cycle life.
It is designed for battery pack, module, cell and large battery cluster testing, including charge and discharge testing, capacity evaluation, DCR testing, cycle life testing and operating condition simulation.
The specified battery-side voltage range is 80–1650 V.
The SI-MS BCDS specification lists four testing channels.
The system supports constant current, constant voltage, constant power, pulse charging and discharging, curve-based testing and operating condition simulation, subject to the configured system capabilities.
The listed testing functions include charge and discharge, capacity, DCR, operating condition, temperature characteristic, rate and cycle life testing, as well as SOC adjustment.
The specified data recording interval is 10 milliseconds. The system can record parameters including voltage, current, power, temperature and charging and discharging capacity.
Yes. The system supports CAN communication and DBC import to help configure communication with a battery management system.
Semco
A Battery Charge & Discharge Cabinet is a testing system that charges and discharges batteries under programmed conditions to evaluate parameters such as voltage, current, capacity, temperature and cycle life.
It is designed for battery pack, module, cell and large battery cluster testing, including charge and discharge testing, capacity evaluation, DCR testing, cycle life testing and operating condition simulation.
The specified battery-side voltage range is 80–1650 V.
The SI-MS BCDS specification lists four testing channels.
The system supports constant current, constant voltage, constant power, pulse charging and discharging, curve-based testing and operating condition simulation, subject to the configured system capabilities.
The listed testing functions include charge and discharge, capacity, DCR, operating condition, temperature characteristic, rate and cycle life testing, as well as SOC adjustment.
The specified data recording interval is 10 milliseconds. The system can record parameters including voltage, current, power, temperature and charging and discharging capacity.
Yes. The system supports CAN communication and DBC import to help configure communication with a battery management system.
