Description

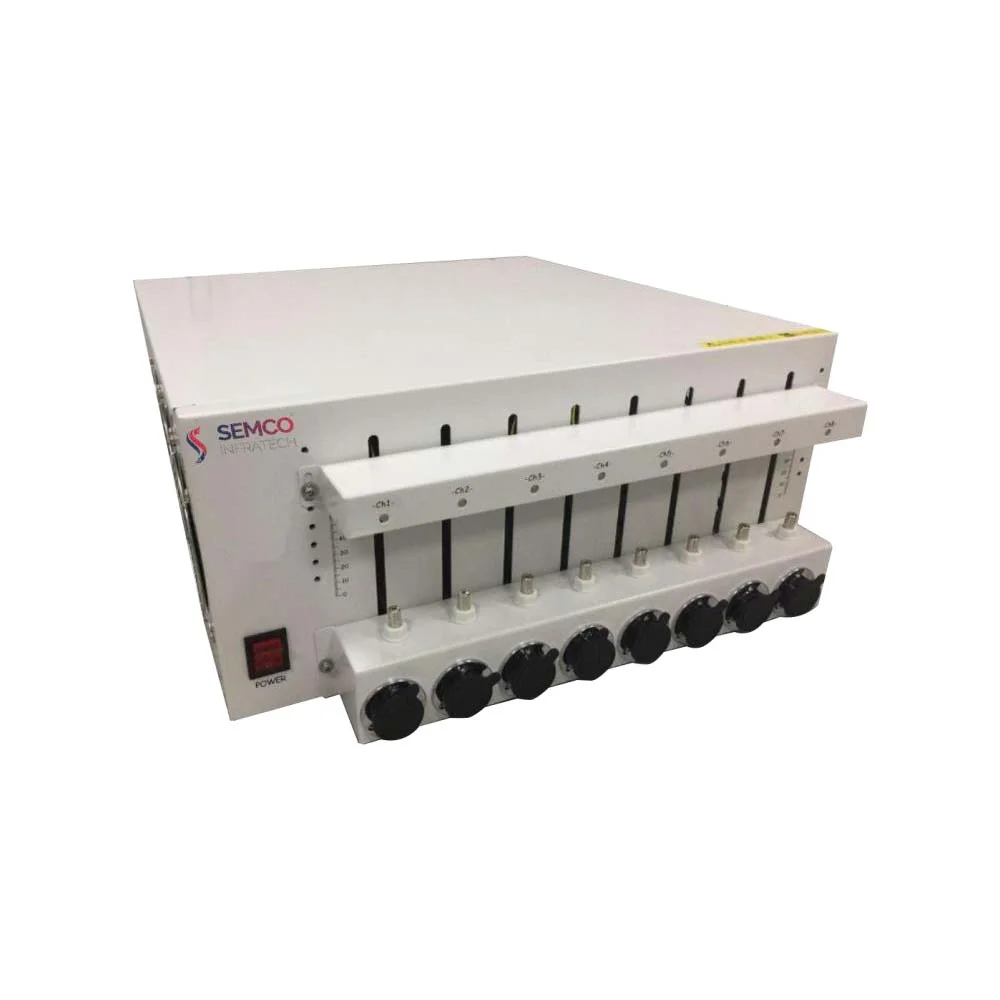

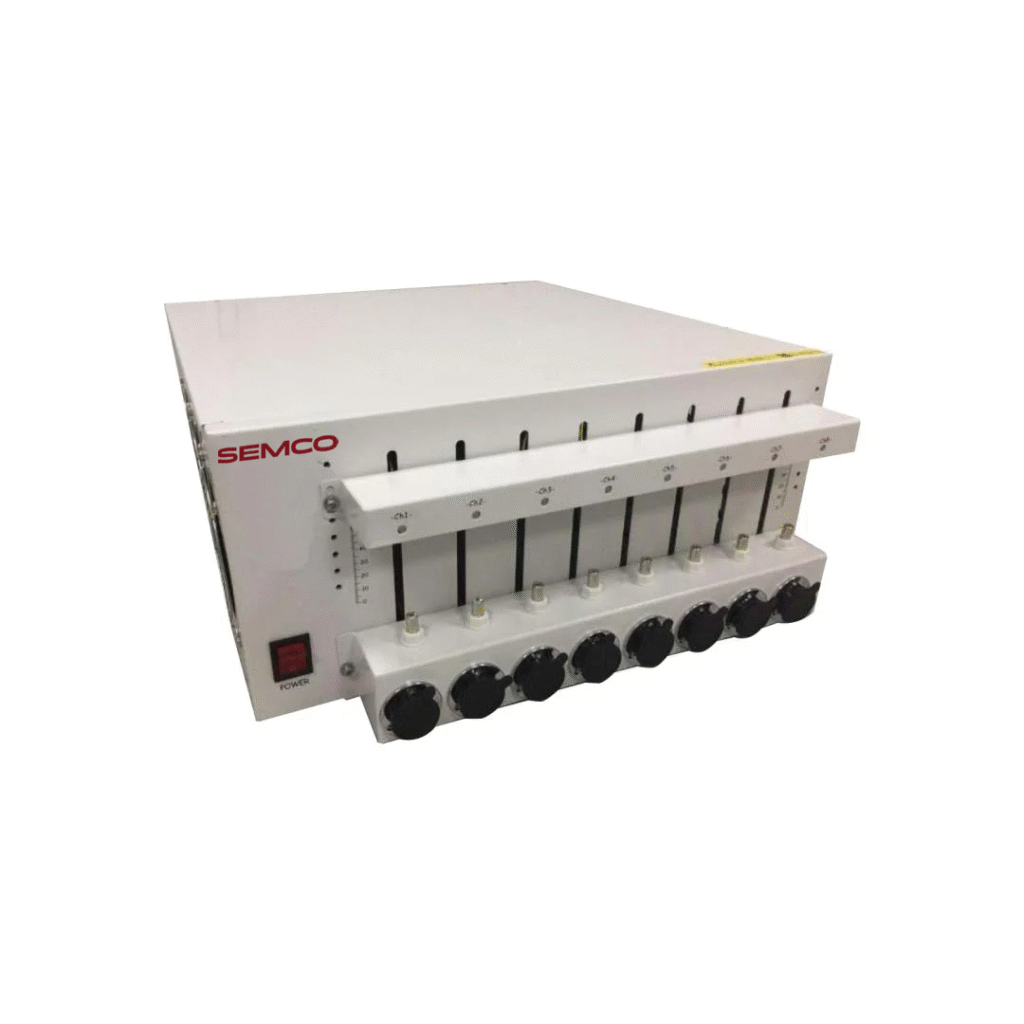

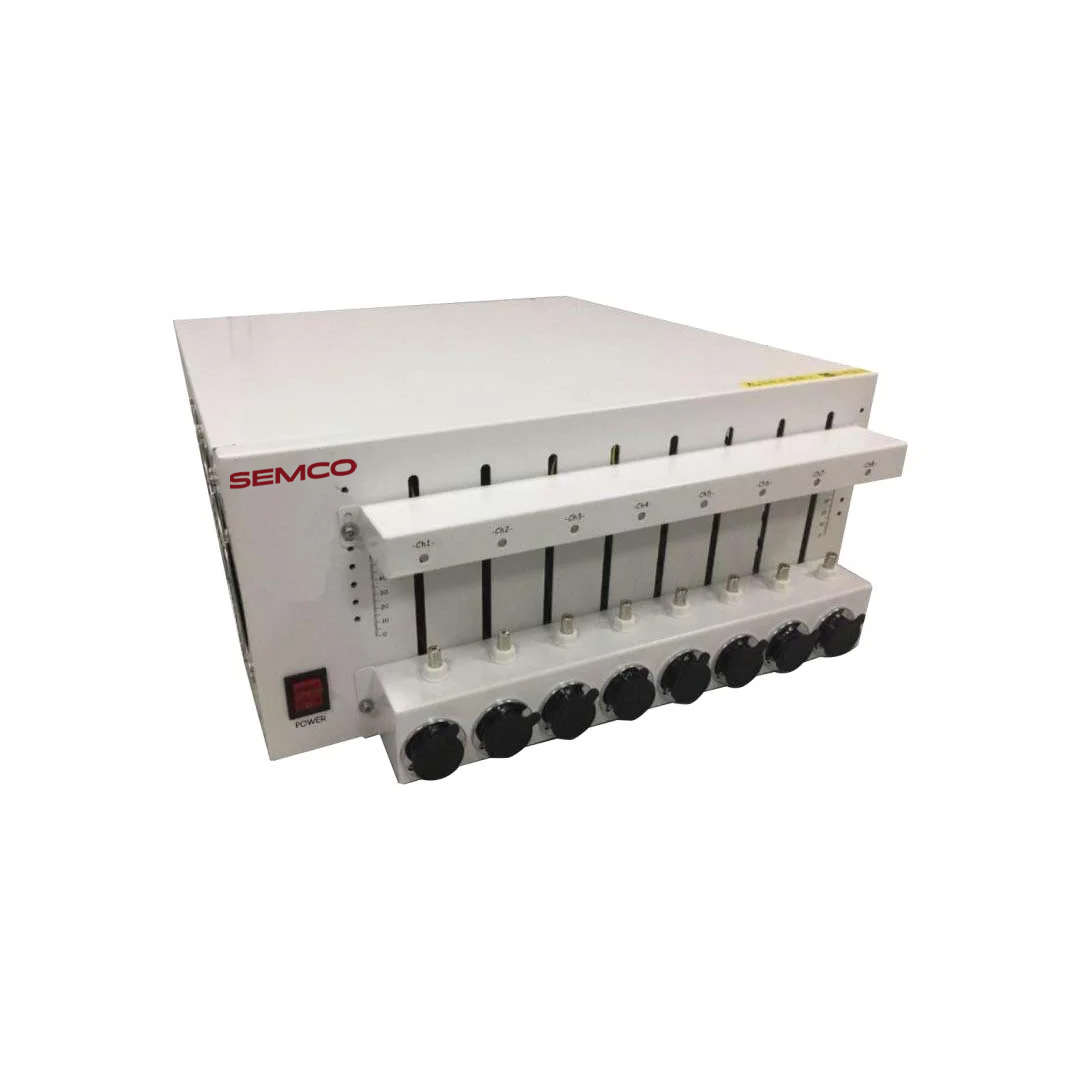

Key Features of Semco SLB 5V 3A 8CH
| Characteristics | Constant current source and constant voltage source, double closed loop structure | ||
| Input resistance | ≥1MΩ | ||
|
Voltage |
Range |
Charge | 10mV-5V (tester port) |
| Discharge | 1V-5V (tester port), The minimum discharge voltage is related to the line length | ||
| Precision | ±0.1% of FS, Ambient temperature 15℃-35℃ | ||
|
Current |
Range |
Charge | 6mA-3A |
| Discharge | 6mA-3A | ||
| Precision | ±0.1% of FS, Ambient temperature 15℃-35℃ | ||
| Power | Single channel | 15W | |
| Stability | 0.2% of FS | ||
| Time | ≤10ms (Current response time) | ||
|
Data record |
Frequency | 1Hz | |
| Data recording conditions | Minimum time interval：1S | ||
| Minimum voltage interval：1mV | |||
| Minimum current interval：1mA | |||
|
Charge |
Charging mode | Constant current charging, constant voltage charging, constant current constant voltage charging, constant power charging | |
| Cut-off condition | Voltage, current, relative time, capacity, -△V | ||
|
Discharge |
Discharge mode | Constant current discharge, constant power discharge, constant resistance discharge | |
| Cut-off condition | Voltage, current, relative time, capacity, -△V | ||
