Double Side Spot Welding 5000A to10000A for Cylindrical Cell

Double Side Spot Welding 6X/8X 5000A/8000A/10000A- Fully Electric/Pneumatic

Technical Excellence

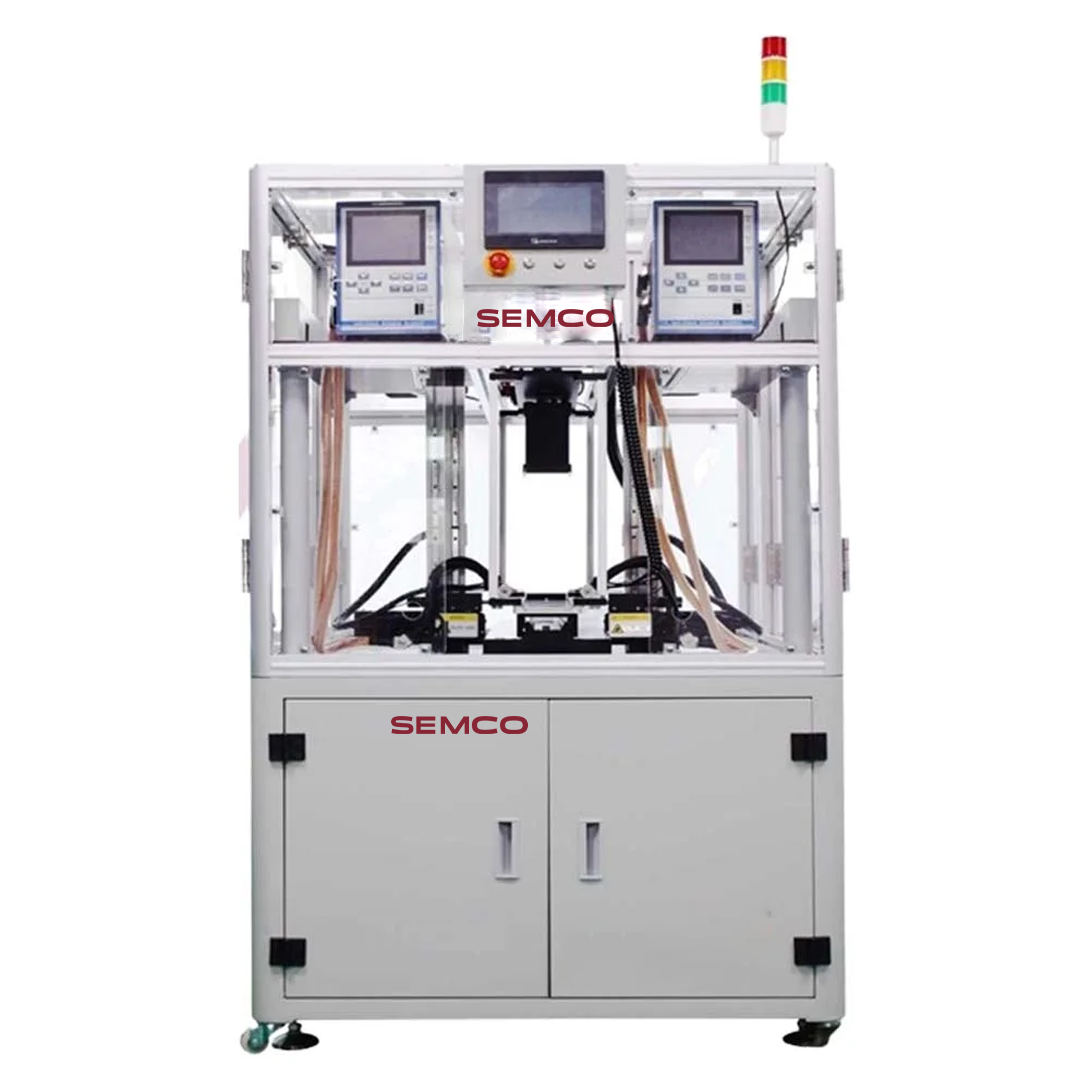

Double Side Spot Welding 6X/8X 5000A/8000A/10000A- Fully Electric/Pneumatic

The Double-Side Spot Welding Machine is engineered for automatic double-sided resistance welding of cylindrical lithium battery cells. Supporting multiple current configurations and fully electric or pneumatic operation, it ensures accurate and stable solder joint positioning for assembled battery packs.

Designed to weld fixed battery groups with integrated battery slices and brackets, the system maintains consistent welding accuracy across different cell formats. With multi-axis control, precision transmission, and intelligent motor-driven movement, it provides reliable real-time processing and seamless integration into lithium battery pack production lines.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

Supports double-side spot welding for cylindrical cells including 18650, 21700, 26650, and 32700
Available in multiple configurations: 6X / 8X with 5000A, 8000A, and 10000A output options
Fully electric or pneumatic operation to meet different production requirements
Accurate and stable solder joint positioning for fixed battery groups and pack assemblies
Suitable for modular lithium battery packs used in power tools, energy storage, EVs, and electric motorcycles

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.

The Semco SI Double Side Spot Welding 6X 5000A – Fully Electric is a high-performance double-side automatic resistance spot welding machine engineered for precision welding of cylindrical lithium-ion battery packs. Equipped with a 6-axis CNC servo motion system and a 6 × 5000A transistor welding power configuration, the machine performs simultaneous double-sided welding to achieve exceptional weld consistency, higher productivity, and superior electrical reliability. Its fully electric servo-controlled welding heads provide accurate pressure control, reduced weld defects, and consistent welding quality for high-volume battery manufacturing.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Specification	Description
Product Model	Semco SI Double Side Spot Welding 6X 5000A – Fully Electric
Product Type	Fully Electric Double-Side Automatic Spot Welding Machine
Welding Current	6 × 5000A
Welding Technology	Double-Side Resistance Spot Welding
Motion Control	6-Axis CNC Servo Control System
Drive System	Fully Electric Servo Welding Heads
Power Supply	Single-Phase AC 220V, 50/60Hz
Power Consumption	2.8 kW
Positioning Accuracy	±0.1 mm
Maximum Welding Speed	Up to 3,600 Welding Points/Hour
Maximum Nickel Strip Thickness	0.20–0.25 mm (Depending on Welding Power Source)
Welding Head Pressure	Adjustable 1–5 kgf
Supported Cell Types	18650, 21700, 26650, 32700, 32650, 14500
Maximum Fixture Size	600 × 350 mm
Maximum Battery Pack Size	580 mm (L) × 330 mm (H)
Key Features	Real-Time Weld Monitoring, Automatic Fault Alarm, CAD Programming, Touchscreen HMI, Servo Motion Control
Applications	Automatic Double-Side Lithium Battery Pack Spot Welding

Product Name

Description

Double Side Spot Welding 6X/8X 5000A/8000A/10000A- Fully Electric/Pneumatic

Also Available for: 6X 8000A, 8X 5000A, and 8X 8000A, 10000A, Pneumatic

Fixed a group Batteries and the battery slice and the bracket are a battery pack.
Make the position of the solder joints of the assembled battery pack welding parts accurate and stable.

Applications

This product is used for:

Support & Warranty

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Double Side Spot Welding 6X/8X 5000A/8000A/10000A- Fully Electric/Pneumatic”

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?

A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.

What products can be manufactured using this line?

It is used to produce battery modules, battery packs, and complete energy storage systems.

Is the assembly line fully automated?

Yes, the line supports fully or semi-automated operations based on production requirements.

Which battery types are supported?

It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.

How is product quality ensured?

In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.

Can the line be customized?

Yes, the assembly line can be customized to match specific capacity, layout, and production needs.

What safety features are included?

The system includes safety interlocks, fault detection, and controlled assembly environments.

Is the line suitable for large-scale production?

Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic?

The Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic is an advanced battery welding system designed for high-precision spot welding of battery cells, nickel strips, and electrical connections. It uses electric or pneumatic operation to deliver consistent welding performance with high current capacity for battery manufacturing applications.

What is the purpose of Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic?

The main purpose of the Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic system is to create strong and reliable weld joints in battery packs and electrical assemblies. It helps manufacturers improve welding precision, production speed, and connection reliability while reducing manual errors.

Which industries use Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic?

The Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic machine is widely used in industries such as lithium-ion battery manufacturing, electric vehicles (EV), battery energy storage systems (BESS), electronics, automotive, renewable energy, and industrial electrical assembly.

What materials can be welded using Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic?

The Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic system is designed to weld nickel strips, nickel-plated steel strips, copper, aluminum, battery tabs, and conductive materials used in lithium-ion battery pack manufacturing and industrial applications.

Why is double-side spot welding important in battery manufacturing?

Using Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic is important because strong weld joints directly affect battery pack safety, conductivity, and long-term performance. High-precision welding reduces connection failures, improves durability, and ensures consistent battery quality.

What are the key features of Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic?

The Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic machine typically includes high current output options (5000A/8000A/10000A), dual-side welding capability, electric or pneumatic operation, programmable settings, precision electrode positioning, fast cycle times, and stable welding performance.

Can Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic be customized?

Yes, the Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic system can be customized according to battery type, welding current requirements, electrode configuration, automation level, production volume, and specific manufacturing applications.

Why choose Semco Infratech for Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic?

Semco Infratech provides advanced Double Side Spot Welding 6X/8X 5000A/8000A/10000A - Fully Electric/Pneumatic solutions designed for high-precision battery welding and industrial manufacturing. With expertise in lithium-ion battery machinery, automation, and customized engineering support, Semco helps manufacturers improve welding quality, productivity, and operational efficiency.
