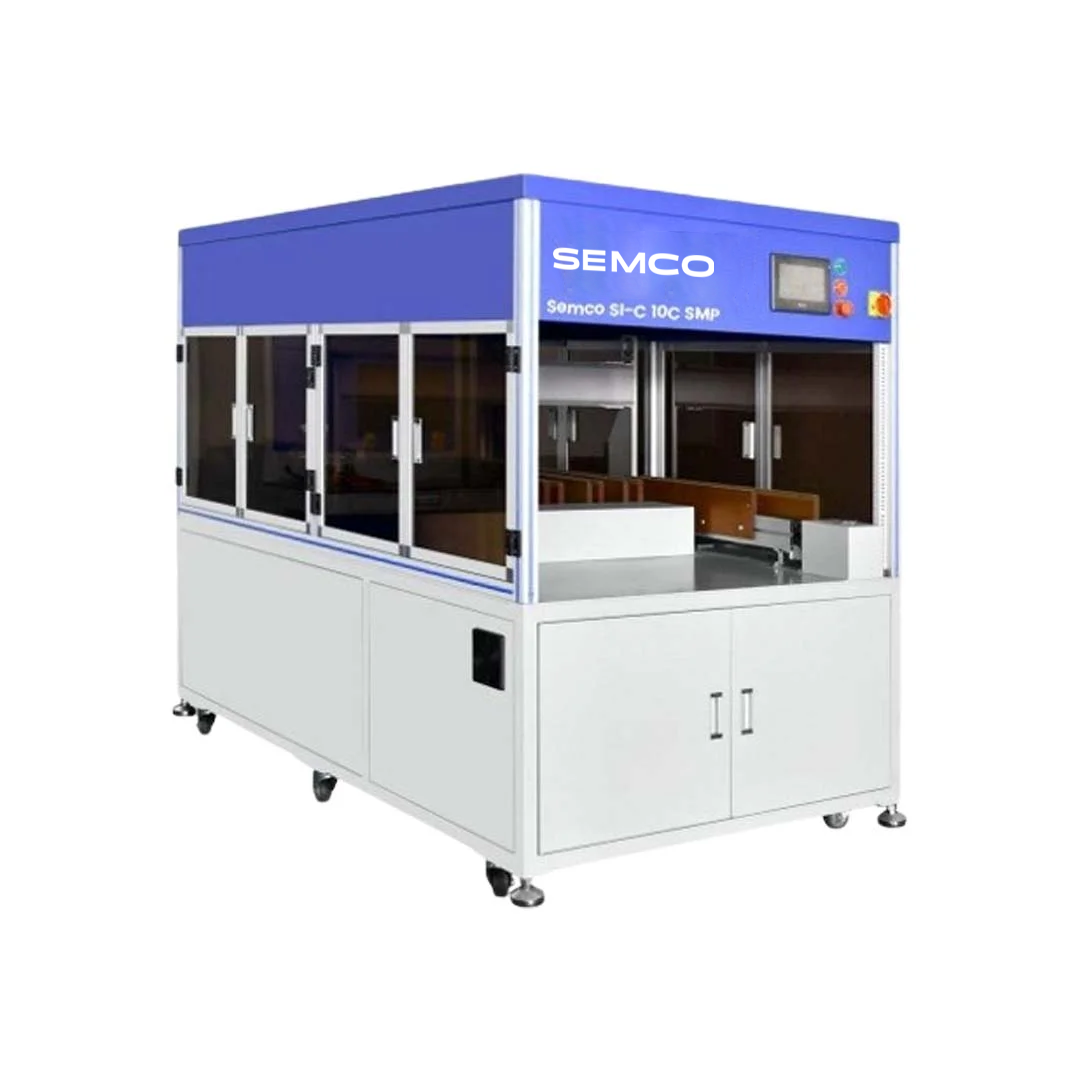

Cell Sorting 10C SMP

Technical Excellence

Key Features of Cell Sorting 10C SMP

  • Equipment suitable cell type: prismatic cell
  • Equipment suitable cell size: L50-260MM, W10-80MM, H50-250MM
  • Functions of the Cell Sorting 10C SMP: It is used for prismatic cell sorting to measure the voltage and internal resistance parameters of the cell, and has the function of scanning code (including bar code and QR code). According to the measurement results, the cell will be sorted according to the parameters set by the customer.
  • Number of channels: 5 OK channels, 1 NG channel /9 OK channels, 1 NG channel.
  • Voltage setting: 0.000-6.000V
  • Internal Resistance setting: 000.0mΩ-999.9mΩ
  • Scan code function: Honeywell scanner, support bar code and QR code
  • Test data can be exported as Excel tables and stored using USB stick
  • Comprehensive production efficiency: 1500-2000PCS/H
  • Control mode: 7.5-inch touch screen/computer optional
  • Production quantity is automatically collected to display the current production efficiency
  • Moving devices: The shift power is driven by servo motor with accurate positioning
  • Hioki 3561/Hioki 3561A Standard tester: HK3560 high-speed tester, voltage accuracy: 0.00005V internal resistance accuracy: 0.01mΩ, can be replaced by Hioki 3561/Hioki 3561A

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

  • High-Precision OCV & AC Resistance Sorting
  • 10-Channel Classification
  • Automated Feeding & Sorting Mechanism
  • PLC + Industrial Computer Control
  • Database & Traceability Support

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.

Overview

This equipment is designed to support efficient and accurate battery assembly and testing workflows. With durable construction, precision control, and user-friendly operation, it delivers consistent performance for both small-scale and large-scale production environments.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

bess assembly line info

Product Specifications

This equipment is designed to support efficient and accurate battery assembly and testing workflows. With durable construction, precision control, and user-friendly operation, it delivers consistent performance for both small-scale and large-scale production environments.

Product Name

Description

Applications

This product is used for:

  • Lithium-ion battery assembly and production units
  • EV battery manufacturing facilities
  • QC and testing labs
  • R&D facilities
  • OEM and contract manufacturing plants
bess assembly line production

Support & Warranty

The product comes with a dedicated support and service package that includes activation, calibration assistance, and post-installation guidance.

  • Standard warranty period
  • Spare part availability details
  • On-site / online installation support
  • AMC (Annual Maintenance Contract) option
  • Technical support contact email
bess assembly line in india

Reviews

There are no reviews yet.

Be the first to review “Cell Sorting 10C SMP”

Your email address will not be published. Required fields are marked *

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?
A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.
It is used to produce battery modules, battery packs, and complete energy storage systems.
Yes, the line supports fully or semi-automated operations based on production requirements.
It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.
How is product quality ensured?
In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.
Yes, the assembly line can be customized to match specific capacity, layout, and production needs.
The system includes safety interlocks, fault detection, and controlled assembly environments.
Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

Cell Sorting 10C SMP is an advanced battery cell sorting system designed to classify and sort lithium-ion cells based on voltage, internal resistance, capacity, and performance parameters. It helps manufacturers ensure consistent battery quality and improve the reliability of battery pack assembly.
The main purpose of Cell Sorting 10C SMP is to accurately sort battery cells according to predefined electrical characteristics. This process helps manufacturers improve battery consistency, reduce cell imbalance, and enhance the overall safety and performance of battery packs.
Cell Sorting 10C SMP is widely used in industries such as lithium-ion battery manufacturing, electric vehicles (EV), battery energy storage systems (BESS), consumer electronics, renewable energy, and industrial battery production facilities.
Cell Sorting 10C SMP is designed to process lithium-ion battery cells, including cylindrical cells, prismatic cells, and pouch cells used in EV batteries, energy storage systems, portable electronics, and industrial battery applications.
Battery cell sorting using Cell Sorting 10C SMP is important because unmatched cells can lead to poor battery performance, reduced lifespan, overheating, and safety risks. Accurate sorting improves battery pack balance, efficiency, durability, and operational reliability.
Cell Sorting 10C SMP typically includes high-speed sorting, voltage and internal resistance testing, multi-channel operation, automated classification, real-time monitoring, precision measurement, user-friendly controls, and customizable sorting parameters.
Yes, Cell Sorting 10C SMP can be customized according to cell type, production capacity, sorting criteria, automation requirements, and battery manufacturing needs to optimize operational efficiency.
Semco Infratech offers reliable Cell Sorting 10C SMP solutions designed for accurate battery cell grading and efficient production workflows. With expertise in lithium-ion battery manufacturing equipment and customized engineering support, Semco helps manufacturers improve battery quality, consistency, and productivity.
Semco
Cell Sorting 10C SMP is an advanced battery cell sorting system designed to classify and sort lithium-ion cells based on voltage, internal resistance, capacity, and performance parameters. It helps manufacturers ensure consistent battery quality and improve the reliability of battery pack assembly.
The main purpose of Cell Sorting 10C SMP is to accurately sort battery cells according to predefined electrical characteristics. This process helps manufacturers improve battery consistency, reduce cell imbalance, and enhance the overall safety and performance of battery packs.
Cell Sorting 10C SMP is widely used in industries such as lithium-ion battery manufacturing, electric vehicles (EV), battery energy storage systems (BESS), consumer electronics, renewable energy, and industrial battery production facilities.
Cell Sorting 10C SMP is designed to process lithium-ion battery cells, including cylindrical cells, prismatic cells, and pouch cells used in EV batteries, energy storage systems, portable electronics, and industrial battery applications.
Battery cell sorting using Cell Sorting 10C SMP is important because unmatched cells can lead to poor battery performance, reduced lifespan, overheating, and safety risks. Accurate sorting improves battery pack balance, efficiency, durability, and operational reliability.
Cell Sorting 10C SMP typically includes high-speed sorting, voltage and internal resistance testing, multi-channel operation, automated classification, real-time monitoring, precision measurement, user-friendly controls, and customizable sorting parameters.
Yes, Cell Sorting 10C SMP can be customized according to cell type, production capacity, sorting criteria, automation requirements, and battery manufacturing needs to optimize operational efficiency.
Semco Infratech offers reliable Cell Sorting 10C SMP solutions designed for accurate battery cell grading and efficient production workflows. With expertise in lithium-ion battery manufacturing equipment and customized engineering support, Semco helps manufacturers improve battery quality, consistency, and productivity.
