BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor

Technical Excellence

Key Features of BMS Tester 1-16S / 1-24S / 1-32S (50-400A)

  • Input power requirement: 180 ~ 240V 50/60 Hz, power: 700W
  • The requirement of equipment access electricity is 220V/50HZ alternating current used in China, and the allowable fluctuation range is within 10%.
  • Charge and discharge voltage: 5000mV ~ 102000mV
  • The voltage range that can be used to detect and set when the equipment is charged or
  • Current accuracy: ± (0.1% FS+0. 1% RD)
  • When the equipment detects or sets the current, the error range is 1% of the full scale plus 0.1% of the reading error
  • Voltage accuracy: ± (0.1% FS+0. 1% RD)
  • The error range of the equipment when detecting or setting voltage is 1% of the full scale plus 0.1% of the reading error
  • Current resolution: 1mA, the minimum unit used by equipment when detecting or setting
  • Voltage resolution: 1mV, the minimum unit used by equipment when detecting or setting
  • Cycle: Cycle times: 1 ~ 9999 times
  • Use programming and equipment to carry out uninterrupted circulation times of various indexes of protection
  • Log tracking
  • Have log function, including operation record and exception record in the whole test process, which can be used to trace the test process.
  • Data processing, man-machine interface
  • Save test data in EXCEL
  • RS 232 interface is adopted between the equipment and the upper computer, which can ensure the stability and real-time performance of data acquisition.
  • Accuracy calibration/software calibration
  • Has scan code start function
  • MES system connection

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

  • High-current testing capability (50–400A) for large battery packs.
  • Multi-cell support (1–16S / 1–24S / 1–32S) with modular design.
  • Portable, robust design for lab or field use.
  • Self‑consumption & balancing tests
  • Supports multiple battery chemistries and configurations.

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.

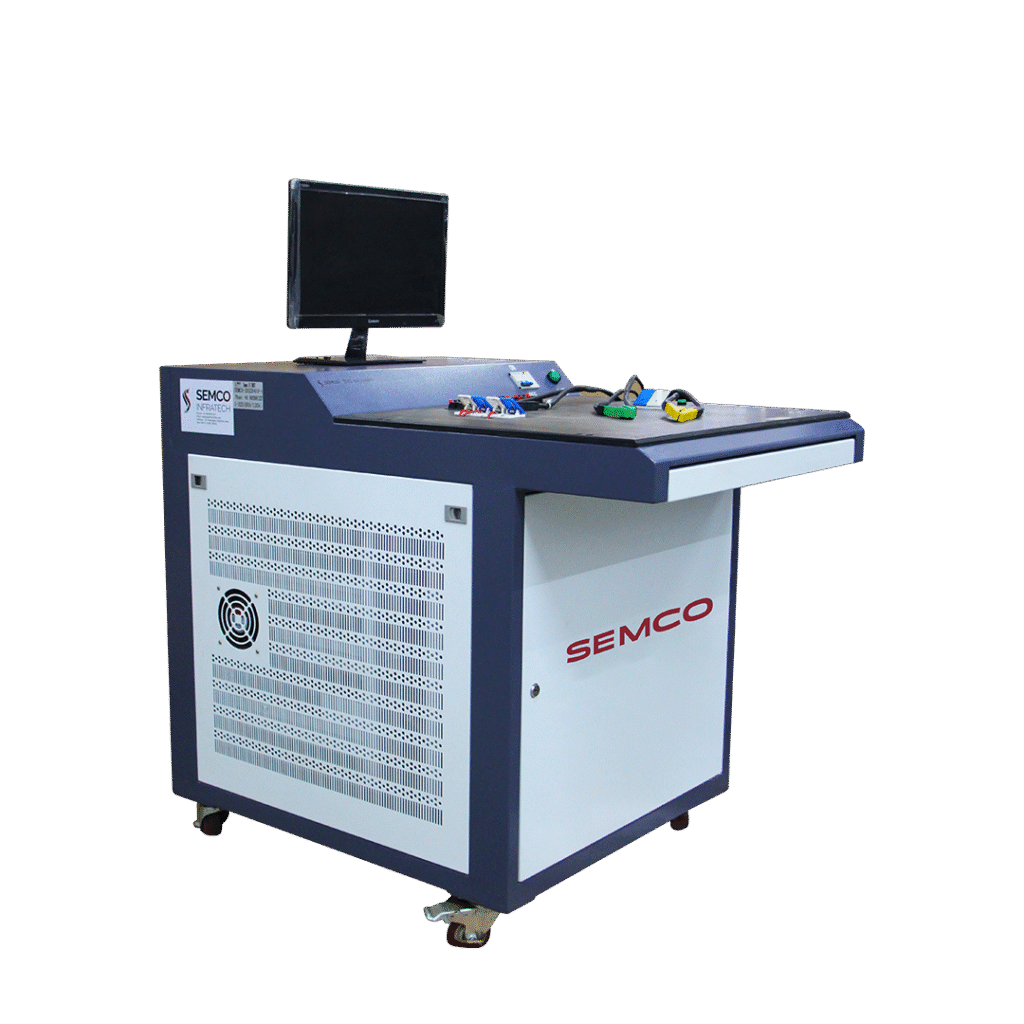

The Semco SI BMS Tester 1-16S / 1-24S / 1-32S, 50–400A with Cabinet is a dedicated Battery Management System (BMS) testing solution designed to evaluate the electrical and protection functions of lithium battery BMS units. With support for 1S to 32S battery configurations and testing currents from 50A to 400A, the system is suitable for validating BMS performance across a wide range of battery pack designs.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Specification Description
Product Model Semco SI BMS Tester
Product Type BMS Testing System with Cabinet
Supported Configurations 1S–16S / 1S–24S / 1S–32S
Test Current Range 50A–400A
Battery Type Lithium-Ion Battery Packs
BMS Testing Charge & Discharge BMS Function Testing
Cell Voltage Testing Supported
Protection Testing Over-Voltage, Under-Voltage & Over-Current Functions
Current Testing High-Current BMS Performance Evaluation
Configuration Cabinet-Based Testing System
Control Programmable Test Parameters
Applications BMS Validation, Battery Pack Testing & Quality Control

Product Name

Description

Applications

This product is used for:

  • Lithium-ion battery assembly and production units
  • EV battery manufacturing facilities
  • QC and testing labs
  • R&D facilities
  • OEM and contract manufacturing plants
  • Lithium-ion battery assembly and production units
  • EV battery manufacturing facilities
  • QC and testing labs
  • R&D facilities
  • OEM and contract manufacturing plants

Support & Warranty

  • Standard warranty period
  • Spare part availability details
  • On-site / online installation support
  • AMC (Annual Maintenance Contract) option
  • Technical support contact email

Reviews

There are no reviews yet.

Be the first to review “BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor”

Your email address will not be published. Required fields are marked *

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?
A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.
It is used to produce battery modules, battery packs, and complete energy storage systems.
Yes, the line supports fully or semi-automated operations based on production requirements.
It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.
How is product quality ensured?
In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.
Yes, the assembly line can be customized to match specific capacity, layout, and production needs.
The system includes safety interlocks, fault detection, and controlled assembly environments.
Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

The BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor is an advanced battery testing solution designed to test and validate Battery Management Systems (BMS) for lithium-ion battery packs. It supports multiple cell configurations and current capacities while offering options with or without CAN communication and temperature sensing for comprehensive battery diagnostics.
The primary purpose of the BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor is to verify BMS performance, monitor battery parameters, detect faults, and ensure battery safety and efficiency. It helps manufacturers improve battery reliability and quality control during production and testing.
The BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor is widely used in industries such as lithium-ion battery manufacturing, electric vehicles (EV), battery energy storage systems (BESS), renewable energy, automotive, electronics, industrial battery production, and R&D laboratories.
The BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor is suitable for testing lithium-ion battery packs, EV batteries, energy storage batteries, industrial battery modules, and customized battery systems with varying cell configurations.
CAN communication and temperature sensing in the BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor are important because they allow real-time battery monitoring, fault detection, communication validation, and thermal performance analysis, helping improve battery safety and operational efficiency.
The BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor typically includes support for multiple cell series (1–16S, 1–24S, 1–32S), current handling from 50A to 400A, optional CAN communication, temperature sensing, real-time monitoring, fault diagnosis, and customizable testing settings.
Yes, the BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor can be customized according to battery specifications, testing requirements, communication protocols, sensor integration, and industrial applications.
Semco Infratech offers advanced BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor solutions designed for precise battery testing and quality assurance. With expertise in lithium-ion battery manufacturing equipment, customization, and technical support, Semco helps manufacturers improve battery performance, safety, and production efficiency.
Semco
The BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor is an advanced battery testing solution designed to test and validate Battery Management Systems (BMS) for lithium-ion battery packs. It supports multiple cell configurations and current capacities while offering options with or without CAN communication and temperature sensing for comprehensive battery diagnostics.
The primary purpose of the BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor is to verify BMS performance, monitor battery parameters, detect faults, and ensure battery safety and efficiency. It helps manufacturers improve battery reliability and quality control during production and testing.
The BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor is widely used in industries such as lithium-ion battery manufacturing, electric vehicles (EV), battery energy storage systems (BESS), renewable energy, automotive, electronics, industrial battery production, and R&D laboratories.
The BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor is suitable for testing lithium-ion battery packs, EV batteries, energy storage batteries, industrial battery modules, and customized battery systems with varying cell configurations.
CAN communication and temperature sensing in the BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor are important because they allow real-time battery monitoring, fault detection, communication validation, and thermal performance analysis, helping improve battery safety and operational efficiency.
The BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor typically includes support for multiple cell series (1–16S, 1–24S, 1–32S), current handling from 50A to 400A, optional CAN communication, temperature sensing, real-time monitoring, fault diagnosis, and customizable testing settings.
Yes, the BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor can be customized according to battery specifications, testing requirements, communication protocols, sensor integration, and industrial applications.
Semco Infratech offers advanced BMS Tester 1-16S / 1-24S / 1-32S (50-400A) With & Without CAN/Temperature Sensor solutions designed for precise battery testing and quality assurance. With expertise in lithium-ion battery manufacturing equipment, customization, and technical support, Semco helps manufacturers improve battery performance, safety, and production efficiency.
