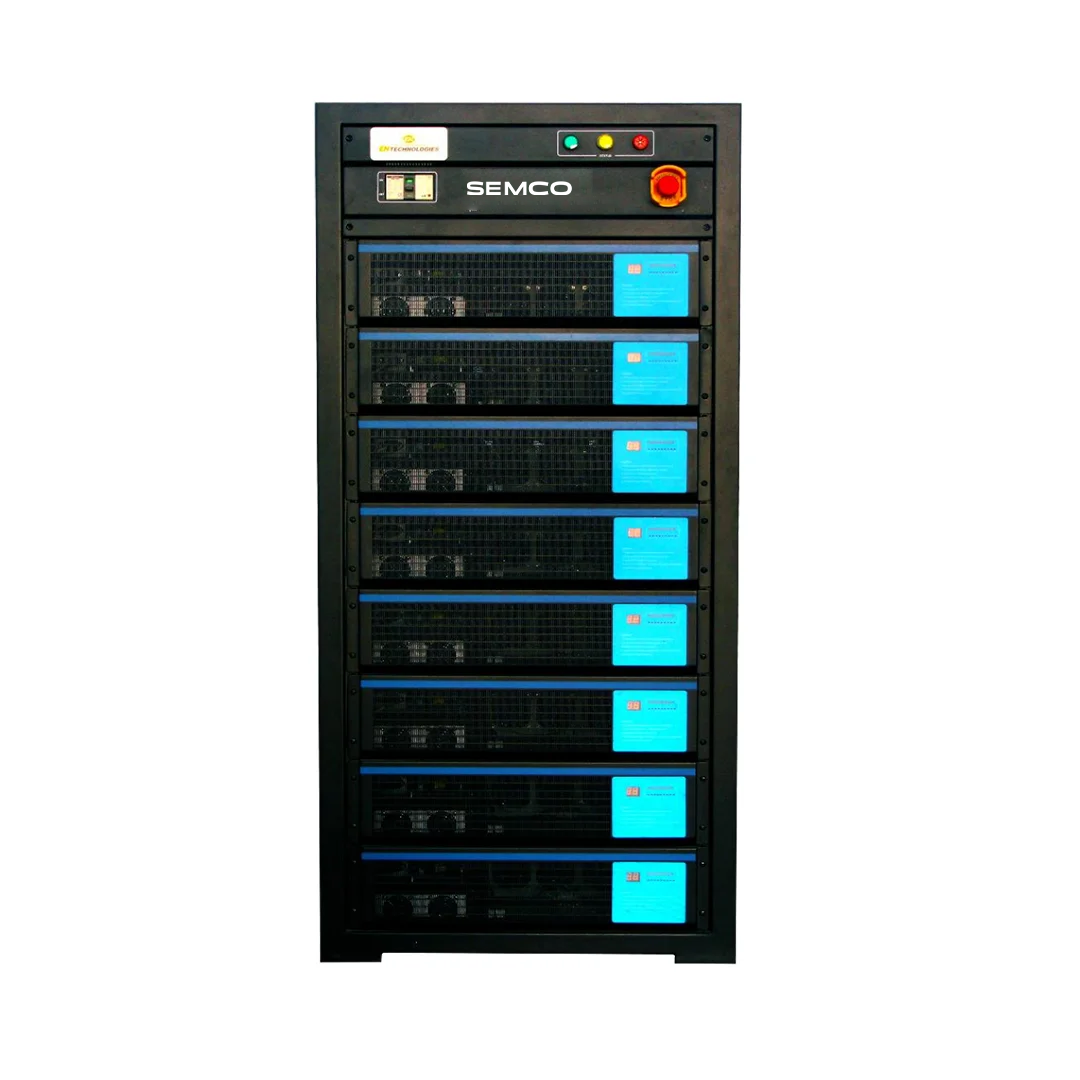

HYNN 5V 100A 16CH Cell Tester – High Accuracy & Control

HYNN 5V 100A 16CH

Technical Excellence

High-Current Multi-Channel Lithium Cell Testing System (16CH)

The HYNN 5V 100A 16CH is a powerful multi-channel lithium battery testing system engineered for demanding cell-level applications such as cycle life testing, capacity verification, and charge–discharge efficiency analysis. Featuring 16 fully independent channels, each with configurable parameters, the system enables simultaneous testing of multiple cells under different conditions with high accuracy and repeatability. Designed with precise CC–CV and CV–CC control without overshoot, four-wire measurement architecture, and modular hardware construction, the system ensures stable performance even at high current levels. Remote operation via WLAN and a robust software platform further enhance usability, making it suitable for R&D laboratories, pilot lines, and mass-production quality assurance environments.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

16 fully independent channels with individual parameter and condition control
High-current capability up to 100 A per channel with ±0.5% measurement accuracy
Smooth CC–CV and CV–CC transitions without overshoot for stable testing
Remote start, stop, and monitoring via WLAN-enabled computer systems
Modular design with strong software platform for easy maintenance and scalability

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.

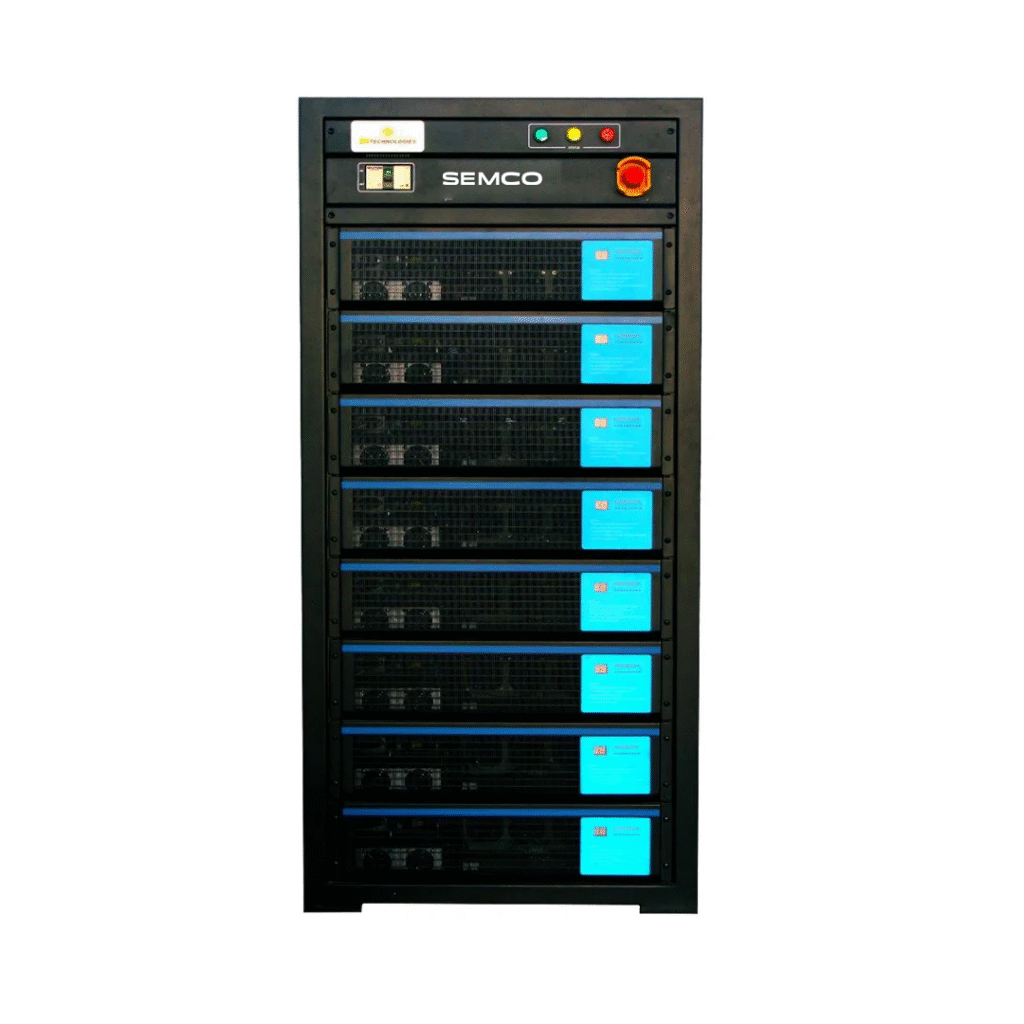

The Semco CT HYNN 5V 100A 16CH is a high-precision 16-channel prismatic lithium battery cell tester designed for comprehensive charge, discharge, capacity, cycle life, and performance testing of lithium-ion battery cells. Supporting a 0–5V voltage range and up to 100A charge/discharge current per channel, the system provides independent channel control with high measurement accuracy, making it ideal for cell formation, grading, quality control, and research applications. Its modular architecture enables reliable, simultaneous testing of multiple cells while ensuring repeatable and accurate results.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Specification	Description
Product Model	Semco CT HYNN 5V 100A 16CH
Product Type	Prismatic Lithium Battery Cell Tester
Number of Channels	16 Independent Channels
Battery Type	Prismatic, Pouch & Cylindrical Lithium Cells
Voltage Range	DC 0–5V
Charging Current	DC 10mA–100A
Discharging Current	DC 10mA–100A
Voltage Accuracy	±(0.05% RD + 0.05% FS)
Current Accuracy	±(0.05% RD + 0.05% FS)
Voltage Resolution	1mV
Current Resolution	1mA
Data Sampling Time	Minimum 1 Second
Control Mode	Independent CC/CV Control for Each Channel
Power Supply	AC 380V, 50Hz
Operating Temperature	-10°C to 40°C
Relative Humidity	10%–90% RH
Applications	Cell Formation, Capacity Testing, Cycle Life Testing & Battery Grading

Product Name

Description

High-Current Multi-Channel Lithium Cell Testing System (16CH)

Applications

This product is used for:

Support & Warranty

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “HYNN 5V 100A 16CH”

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?

A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.

What products can be manufactured using this line?

It is used to produce battery modules, battery packs, and complete energy storage systems.

Is the assembly line fully automated?

Yes, the line supports fully or semi-automated operations based on production requirements.

Which battery types are supported?

It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.

How is product quality ensured?

In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.

Can the line be customized?

Yes, the assembly line can be customized to match specific capacity, layout, and production needs.

What safety features are included?

The system includes safety interlocks, fault detection, and controlled assembly environments.

Is the line suitable for large-scale production?

Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is the HYNN 5V 100A 16CH?

The HYNN 5V 100A 16CH is an advanced battery testing and charging/discharging system designed for high-precision performance testing of lithium-ion batteries and battery packs. With a 5V, 100A, and 16-channel configuration, it enables simultaneous multi-channel battery testing for improved efficiency and accurate performance evaluation.

What is the purpose of the HYNN 5V 100A 16CH?

The main purpose of the HYNN 5V 100A 16CH is to test, charge, discharge, and analyze battery performance under controlled conditions. It helps manufacturers evaluate battery capacity, efficiency, charging behavior, discharge characteristics, and overall battery reliability.

Which industries use the HYNN 5V 100A 16CH?

The HYNN 5V 100A 16CH is widely used in industries such as lithium-ion battery manufacturing, electric vehicles (EV), battery energy storage systems (BESS), renewable energy, consumer electronics, research laboratories, and industrial battery testing facilities.

What types of batteries can be tested using the HYNN 5V 100A 16CH?

The HYNN 5V 100A 16CH is suitable for testing lithium-ion batteries, battery cells, battery modules, EV batteries, energy storage batteries, pouch cells, cylindrical cells, and prismatic battery systems depending on testing requirements.

What does the 16CH configuration mean in the HYNN 5V 100A 16CH?

The 16CH configuration in the HYNN 5V 100A 16CH means the system can test up to 16 battery channels simultaneously. This improves testing efficiency, increases productivity, and allows manufacturers to conduct multiple battery performance evaluations at the same time.

What are the key features of the HYNN 5V 100A 16CH?

The HYNN 5V 100A 16CH typically includes high-current testing capability, 16-channel simultaneous operation, precise charging/discharging control, real-time monitoring, data analysis, safety protection systems, and advanced battery performance evaluation features.

Can the HYNN 5V 100A 16CH be customized for industrial applications?

Yes, the HYNN 5V 100A 16CH can be customized based on testing requirements, battery type, automation level, software integration, voltage/current specifications, and industry-specific operational needs.

Why choose Semco Infratech for the HYNN 5V 100A 16CH?

Semco Infratech offers reliable HYNN 5V 100A 16CH solutions designed for high-precision battery testing and performance analysis. With expertise in battery manufacturing equipment, technical support, and customized engineering solutions, Semco helps manufacturers improve battery quality, efficiency, and testing accuracy.
