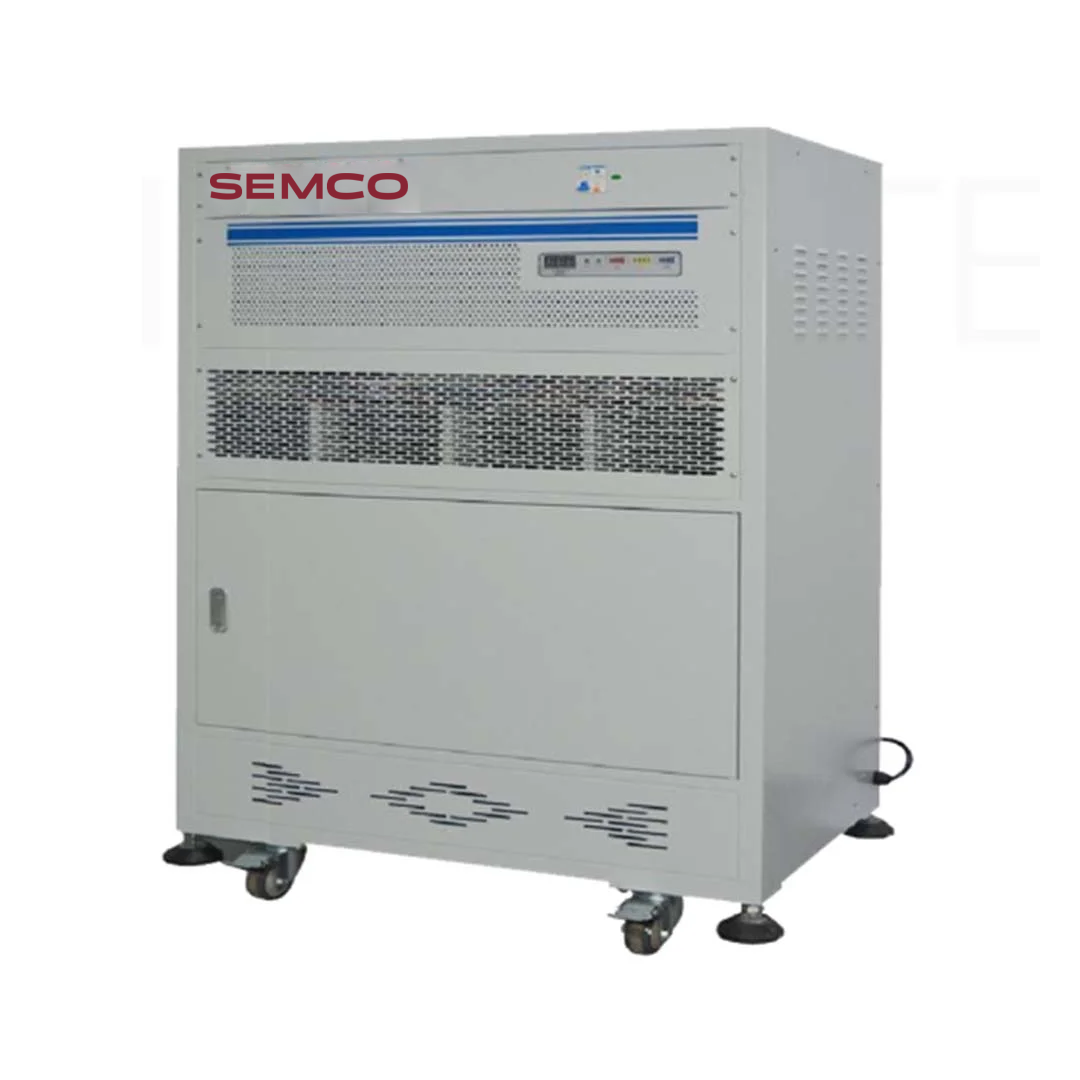

100V Battery Charging Discharging System

Battery Charging Discharging System 100V (20/40A) 1CH

Technical Excellence

Recharge	Constant voltage cut-off current	Lowest200mA
Capacity	Precision	±1‰
Power	Discharge power	≦4000W
Time	Inspection time	Receive real time <2S
Time	Timing range	0~999 hours/step
Data logging interval		≥5S
Mid-range version		1.1 series
Recharge	Charging mode	Constant current and constant voltage charging
Recharge	Cut-off condition	Voltage, current, relative time, overcharge protection
Discharge	Discharge mode	Constant current discharge
Discharge	Cut-off condition	Voltage, relative time, over-discharge protection
Loop	Cycle measurement range	1~999 times
Loop	Number of steps in a single cycle	100
Voltage and current detection sampling		Four-wire sampling
Database		Use SQL database to manage test data
Host computer communication method		Based on TCP/IP protocol, serial port
Data output method		EXCEL, TXT, chart
Communication interface		Network port
Number of channels per cabinet		Single channel

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

Single-channel (1CH) standalone design.
Maximum 100V output with 20A continuous / 40A peak current.
4 kW power capability for high-current testing of lithium-ion cells.
Real-time monitoring of voltage, current, and temperature.
Built-in protections for overvoltage, overcurrent, and thermal events.

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.

The Semco Battery Charging Discharging System 100V (20/40A) 1CH is a precision battery charge and discharge testing system designed for lithium-ion cell and battery testing applications. It provides up to 100V output, 20A continuous current, and 40A peak current, with a maximum discharge power of 4kW. The system supports constant-current and constant-voltage charging, constant-current discharge, programmable cutoff conditions, and cycle testing for evaluating battery performance and aging.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Specification	Description
Product Model	Semco Battery Charging Discharging System 100V (20/40A) 1CH
Product Type	Battery Charging & Discharging Test System
Number of Channels	1 Channel
Maximum Output Voltage	100V
Continuous Current	20A
Peak Current	40A
Maximum Discharge Power	≤4kW
Charging Mode	Constant Current & Constant Voltage (CC-CV)
Discharge Mode	Constant Current
Cycle Testing	1–999 Cycles
Steps per Cycle	Up to 100 Steps
Timing Range	0–999 Hours/Step
Data Logging Interval	≥5 Seconds
Sampling Method	Four-Wire Voltage & Current Sampling
Real-Time Monitoring	Voltage, Current & Temperature
Communication	TCP/IP, Serial Port & Network Port
Data Management	SQL Database
Data Export	Excel, TXT & Charts
Protection	Overvoltage, Overcurrent & Thermal Protection
Design	Single-Channel Standalone System

Product Name

Description

Applications

This product is used for:

Support & Warranty

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Battery Charging Discharging System 100V (20/40A) 1CH”

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is a BESS Assembly Line?

A BESS Assembly Line is an automated system used to assemble battery energy storage modules and packs efficiently and accurately.

What products can be manufactured using this line?

It is used to produce battery modules, battery packs, and complete energy storage systems.

Is the assembly line fully automated?

Yes, the line supports fully or semi-automated operations based on production requirements.

Which battery types are supported?

It supports lithium-ion batteries including prismatic, cylindrical, and pouch cells.

How is product quality ensured?

In-line testing, vision inspection, and automated checks ensure consistent quality and reliability.

Can the line be customized?

Yes, the assembly line can be customized to match specific capacity, layout, and production needs.

What safety features are included?

The system includes safety interlocks, fault detection, and controlled assembly environments.

Is the line suitable for large-scale production?

Yes, it is designed for high-throughput and scalable manufacturing.

Faq

Frequently Asked Questions

Find quick answers to common questions about our BESS Assembly Line, including automation capabilities, supported battery types, customization options, safety standards, and production scalability.

What is the Battery Charging Discharging System 100V (20/40A) 1CH?

The Battery Charging Discharging System 100V (20/40A) 1CH is an advanced battery testing and analysis system designed to charge and discharge lithium-ion batteries under controlled conditions. It helps manufacturers evaluate battery performance, capacity, efficiency, and lifecycle through accurate testing and monitoring.

What is the purpose of the Battery Charging Discharging System 100V (20/40A) 1CH?

The main purpose of the Battery Charging Discharging System 100V (20/40A) 1CH is to test battery charging and discharging performance with precision. It helps manufacturers analyze battery capacity, voltage behavior, charging efficiency, cycle life, and overall battery reliability for quality assurance.

Which industries use the Battery Charging Discharging System 100V (20/40A) 1CH?

The Battery Charging Discharging System 100V (20/40A) 1CH is widely used in industries such as lithium-ion battery manufacturing, electric vehicles (EV), battery energy storage systems (BESS), renewable energy, electronics, automotive, research laboratories, and battery testing facilities.

What types of batteries can be tested using the Battery Charging Discharging System 100V (20/40A) 1CH?

The Battery Charging Discharging System 100V (20/40A) 1CH can test lithium-ion batteries, EV battery modules, battery packs, prismatic cells, cylindrical cells, pouch cells, and energy storage batteries to measure charging and discharging performance accurately.

Why is battery charging and discharging testing important?

Testing with the Battery Charging Discharging System 100V (20/40A) 1CH is important because it helps identify battery performance issues, charging efficiency, thermal stability, cycle durability, and energy output. Proper testing improves battery safety, reliability, and product quality before market deployment.

What are the key features of the Battery Charging Discharging System 100V (20/40A) 1CH?

The Battery Charging Discharging System 100V (20/40A) 1CH typically includes high-precision voltage and current control, programmable charging/discharging cycles, real-time monitoring, accurate data logging, safety protection systems, and a user-friendly interface for detailed battery analysis.

Can the Battery Charging Discharging System 100V (20/40A) 1CH be customized?

Yes, the Battery Charging Discharging System 100V (20/40A) 1CH can be customized according to voltage range, current requirements, testing channels, automation level, battery specifications, and industrial testing needs.

Why choose Semco Infratech for the Battery Charging Discharging System 100V (20/40A) 1CH?

Semco Infratech provides advanced Battery Charging Discharging System 100V (20/40A) 1CH solutions designed for accurate battery performance testing and industrial-grade reliability. With expertise in battery manufacturing and testing equipment, Semco helps businesses improve battery quality, operational efficiency, and compliance with testing standards.
