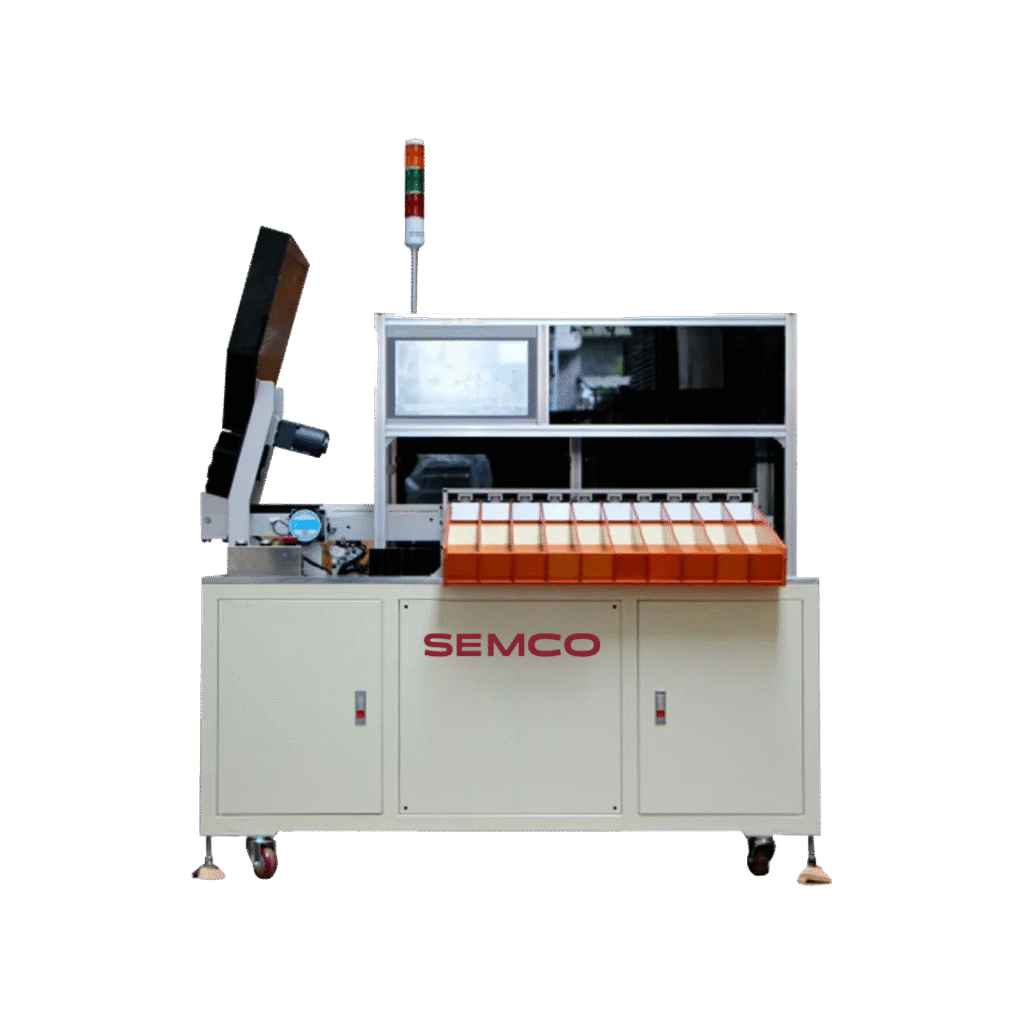

A high-speed, high-accuracy 10-channel battery cell sorting machine with barcode traceability, designed for precise classification of cylindrical lithium cells based on voltage and internal resistance.
The 10CH Sorting Machine with Barcode for 18650 & 21700 cells is a professional-grade solution for automated lithium battery cell grading in production and quality control environments. Engineered to handle multiple cylindrical formats—including 18650, 21700, 26650, and 32700—this system delivers fast, stable, and highly accurate sorting performance.
With a throughput of up to 4000 cells per hour, the machine evaluates open circuit voltage (OCV) and AC internal resistance (IR) to ensure consistent electrical characteristics before cells proceed to module or pack assembly. The integrated barcode scanning system enables full traceability, allowing manufacturers to link test data to individual cells for improved quality management and production analytics.
Built on a rigid frame using high-quality cold-rolled steel and aluminium profiles, the system offers excellent structural stability, low vibration, and long-term durability. Its 99.9% or higher pass accuracy makes it an ideal choice for battery manufacturers seeking efficiency, repeatability, and data-driven control in high-volume sorting operations.
Cell Aging Machines are designed to stabilize lithium-ion cells through controlled charge and discharge cycles, validating capacity, voltage consistency, and thermal behavior before assembly.
Battery Pack Testers perform complete electrical and safety validation, including voltage, current, insulation resistance, and protection checks.
LOCV Sorting machines measure open circuit voltage to group cells with consistent electrical characteristics, improving performance and lifespan.
Module Stacking systems precisely align and stack battery cells into mechanically stable modules for downstream processing.
Compression machines apply uniform pressure to enhance module strength, thermal contact, and long-term durability.
Laser Cleaning removes oxides and contaminants from battery tabs and terminals, ensuring clean, high-quality welding surfaces.
Vision-based polarity and CCD inspection detects alignment errors, defects, and missing components early in the process.
Laser Welding machines deliver precise, repeatable, high-strength joints with minimal heat impact.
End-of-Line testing validates electrical, functional, and safety performance before pack integration.
The Pack Line integrates final assembly, enclosure installation, and testing for scalable battery production.
EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.
This equipment is designed to support efficient and accurate battery assembly and testing workflows. With durable construction, precision control, and user-friendly operation, it delivers consistent performance for both small-scale and large-scale production environments.
Product Name
Description
AC220V±10% 50Hz
0.5~0.
18650/26650/21700/32700
250 kg
1320*860*1200(mm)
High quality cold rolling plate, aluminium profile production +0.5%
Open circuit voltage AC internal resistance -10°C~40°C
<800W
4000PCS/H
| Working Voltage | AC220V±10% 50Hz | Power | <800W |
| Working Gas Source | 0.5~0. | Working Efficiency | 4000PCS/H |
| Fitted Norm | 18650/26650/21700/32700 | Sorting Channel | 10 |
| Device Weighs | 250 kg | Percent Of Pass | 99.9% or higher |
| Shape Size | 1320*860*1200(mm) | Open Circuit Voltage | Accuracy +/- 0.1% |
| Frame Materials | High quality cold rolling plate, aluminium profile production +0.5% | Ac Imp | ±0.5% |
| Sorting Parameters | Open circuit voltage AC internal resistance -10°C~40°C | Indoor Temperature | -10°C~40°C |
The product comes with a dedicated support and service package that includes activation, calibration assistance, and post-installation guidance.
