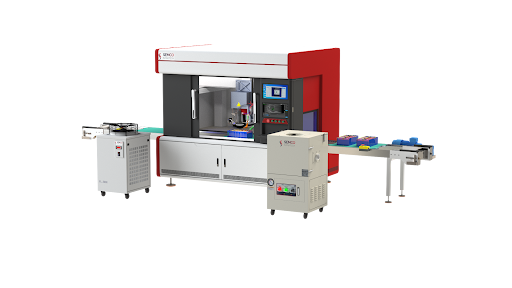

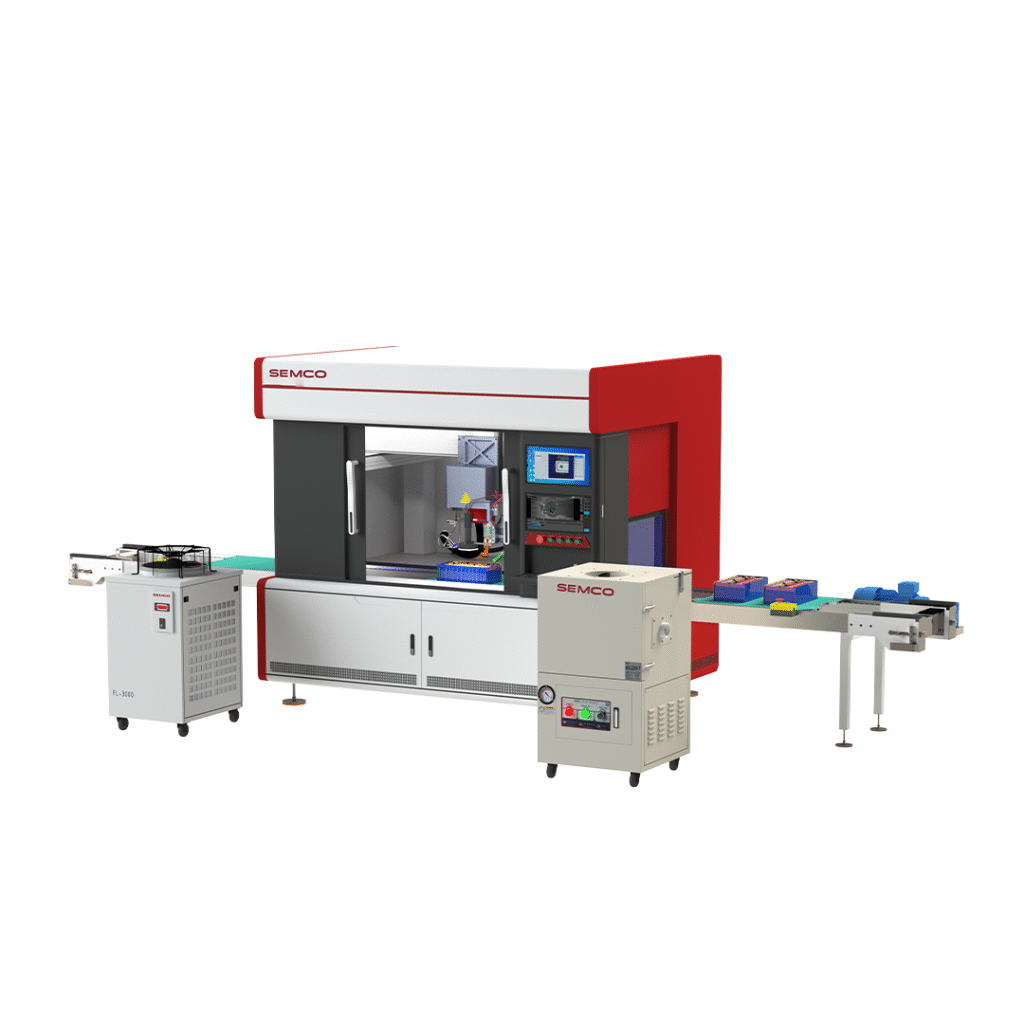

• Machine process name: Busbar welding
• Operation mode: automatic, manual
• Action process: The elevator takes the board from the lower level to the upper level → the carrier automatically flows into the manual operation position → the manual operator moves the product to the carrier board and installs the busbar, and then automatically flows into the welding machine → blocking and lifting CCD visual mark point detection → automatic start of welding → after welding is completed, the product automatically flows into the post-weld manual operation position → manual operator moves the product off the line and the empty carrier board automatically flows into the return elevator
• Pressing method: This machine adopts single press head pressing welding method;
• Frame structure: The lower frame is 50*50*4 square tube welded, the upper protective cover is sheet metal welded, and the door panel is inlaid with organic glass;

Equipment Configuration and Standards

• XYZ axis Working range: length 1200MM*width 600MM*height 300MM
• Effective welding range: length 900MM*width 500MM*height 300MM
• The rangefinder performs height detection and corrects the Z-axis height based on the detection results
• The welding effect meets the process requirements of penetration, tensile stress, shear stress, etc.
• Laser: Raycus
• Supporting equipment: chiller, vacuum cleaner
