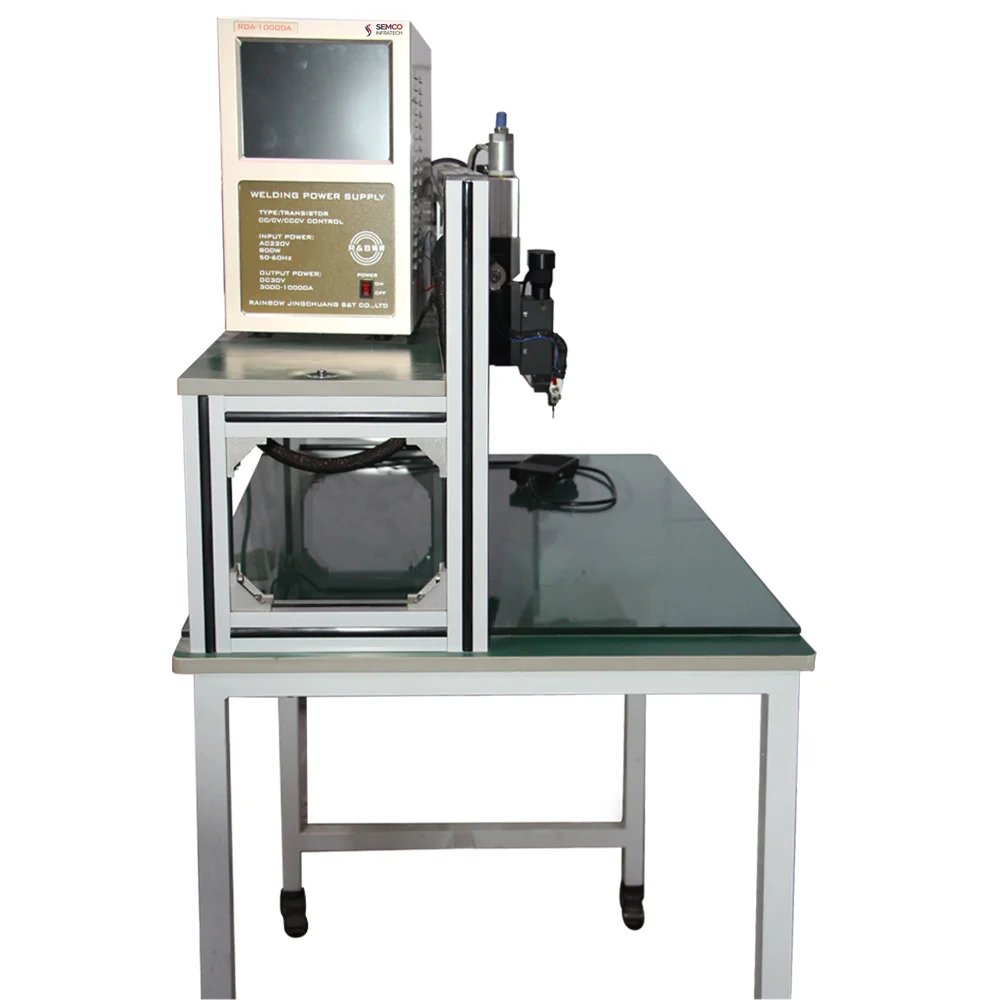

Manual Spot welding BTW 5000A/10000A

Manual Spot welding BTW 5000A/10000A

  • The highest welding frequency in the industry (200KHz) and the most powerful pulse power in the industry.
  • The welding current rises quickly, enabling high-quality welding of workpieces in a very short time.
  • Constant current, constant voltage, constant current and constant voltage three control modes.
    Inquire Now
    Name
Categories: ,

Description

Product Model Semco SI-BTW 5000A Semco SI-BTW 1000A
Type Standard type Standard type
Enter the power supply AC220V 50-60Hz AC220V 50-60Hz
Maximum input power 400W 800W
Maximum welding current 5000A 10000A
Maximum welding voltage 125KHz 125KHz
Control mode Constant current / constant voltage / constant current constant voltage Constant current / constant voltage / constant current constant voltage
Preload time range 0-9999ms 0-9999ms
Slow-up time frame 0-9.9ms 0-9.9ms
Welding time frame 0-9.9ms 0-9.9ms
Mitigation time frame 0-9.9ms 0-9.9ms
Cooldown time range 0-99.9ms 0-99.9ms
Holding time range 0-9999ms 0-9999ms
Current setting range 200-5000A 200-10000A
Voltage setting range 0-10.0V 0-10.0V
Cooling method Air cooled Air cooled
Weight 20Kg 30Kg
Form factor 415*215*348mm 415*215*348mm



Reviews

There are no reviews yet.

Be the first to review “Manual Spot welding BTW 5000A/10000A”

Your email address will not be published. Required fields are marked *

FAQs

What does SEMCO Infratech specialize in?
SEMCO Infratech is a division of the Semco Group, specializing in the design, manufacture, and distribution of lithium‑ion cell processing, battery pack assembly machinery, and battery testing equipment. Their turnkey solutions include automated and semi‑automated assembly lines for cylindrical, prismatic, and pouch cells
