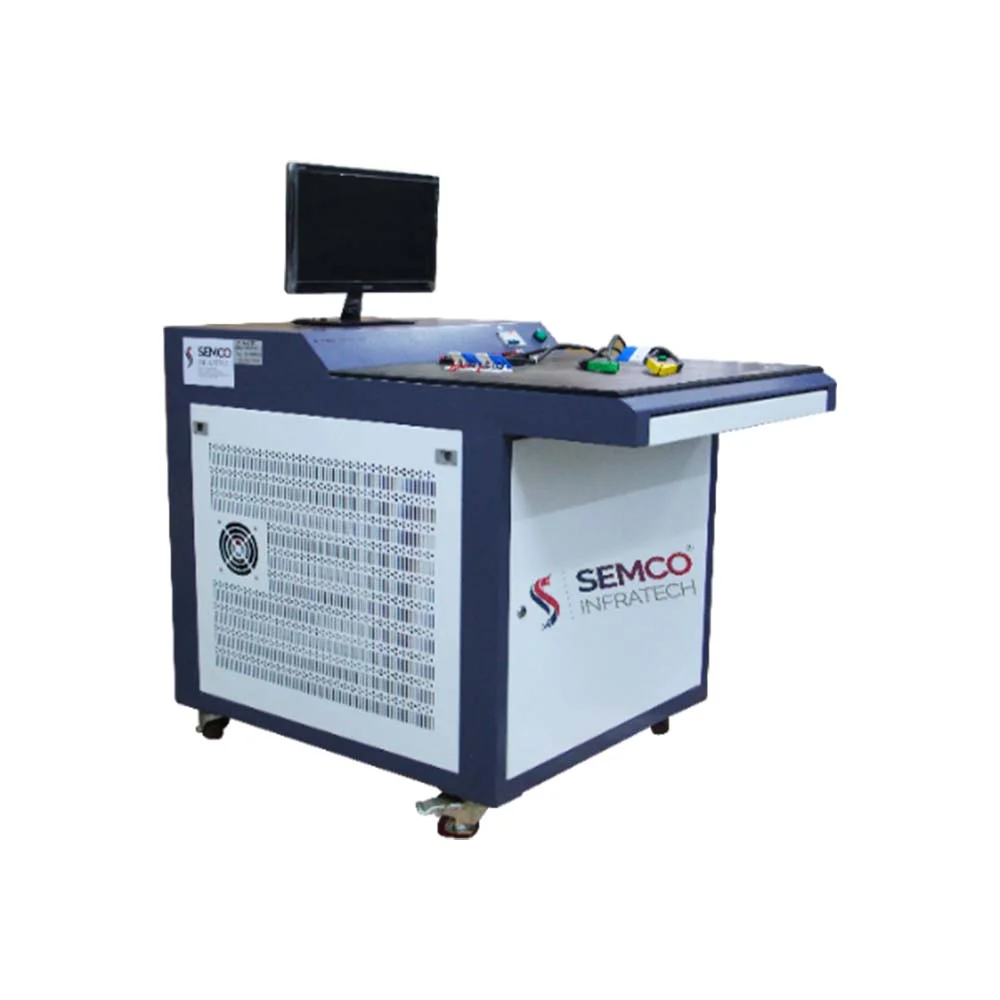

Battery Management System Tester 1-32S (60A/120A) With Cabinet



Also Available For: 60A-200A

Short circuit protection test: refers to the real short circuit protection test microsecond level
Drop test: It means that the signal line of a certain section can be detected if it falls off or breaks
Power consumption test: refers to the true and accurate power consumption of each section
Equalization Current and Equalization Voltage: Equalization Current and Equalization Voltage

Inquire Now
Please enable JavaScript in your browser to complete this form.
Name

Description

  • Input power requirement: 180 ~ 240V 50/60 Hz, power: 700W
  • The requirement of equipment access electricity is 220V/50HZ alternating current used in China, and the allowable fluctuation range is within 10%.
  • Charge and discharge voltage: 5000mV ~ 102000mV
  • The voltage range that can be used to detect and set when the equipment is charged or
  • Current accuracy: ± (0.1% FS+0. 1% RD)
  • When the equipment detects or sets the current, the error range is 1% of the full scale plus 0.1% of the reading error
  • Voltage accuracy: ± (0.1% FS+0. 1% RD)
  • The error range of the equipment when detecting or setting voltage is 1% of the full scale plus 0.1% of the reading error
  • Current resolution: 1mA, the minimum unit used by equipment when detecting or setting
  • Voltage resolution: 1mV, the minimum unit used by equipment when detecting or setting
  • Cycle: Cycle times: 1 ~ 9999 times
  • Use programming and equipment to carry out uninterrupted circulation times of various indexes of protection
  • Log tracking
  • Have log function, including operation record and exception record in the whole test process, which can be used to trace the test process.
  • Data processing, man-machine interface
  • Save test data in EXCEL
  • RS 232 interface is adopted between the equipment and the upper computer, which can ensure the stability and real-time performance of data acquisition.
  • Accuracy calibration/software calibration
  • has scan code start function
  • MES system connection
