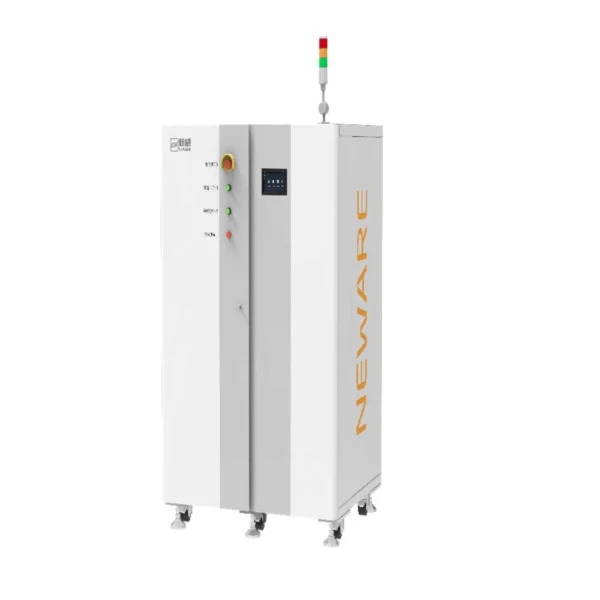

Regenerative Testers 20V-1000V & 30A-800A


Input power AC380V±10% 50/60±5Hz
Power factor ≥99% (Full load)
THDi ≤5% (Full load)
Input resistance ≥1MΩ
Inquire Now
Please enable JavaScript in your browser to complete this form.


Input power   66.7kW
Input current   101.3A/Single
Overall system 94%(Max)   94%
≤75dB   ≤75dB
Voltage and current sampling   Four-wire connection (same port for charging and discharging)
Power control module type   IGBT
Input power wiring method   Three-phase-four wire system
Power input protection   Anti-surge, anti-silos, anti over or under frequency, anti over or under voltage, anti-phase absence, etc.
Functions and performances
Voltage Output range Charge:0V~600V
Min discharge voltage 10
Accuracy ±0.02% of FS
Resolution 24bit
Current Output range 0.25A~50A
Accuracy (independent range) ±0.05 % of FS
CV cut-off current 50mA
Resolution 24bit
Power Single channel output power 30kW
Whole machine output power 60kW
Time Current response time ≤5ms
Current conversion time ≤10ms
Min. step time 0.1s
