Description
- Modular manufacturing, strong versatility and easy maintenance.
- Using the four-wire method to measure, improve the test accuracy and high.
- Each battery channel has a completely independent constant current and constant voltage source, and the self-contained loop does not affect each other.
- The equipment adopts the control method of sending the whole machine process.
- The sampling speed is fast, and the inspection time of the whole cabinet is ≤6S.
- Complete WINDOWS platform software, powerful software, friendly man-machine interface, easy to operate. The host computer can set up to 32 steps and 256 cycles, and each formation step can be selected from four attributes, including constant current charging, constant voltage charging, constant current discharging, and sleep.
- It can draw the dynamic curve of the process of converting each battery into capacity in real time, including voltage/time curve, current/time curve, capacity/time curve, energy/time curve, capacity/voltage curve and other function menus.
- LED indicator light is used to indicate the working status of the battery.
- Communication method: RS485/WIFI.
- Each host computer can monitor up to 10 devices.
- With data power-off protection function, the incoming power continues to run.
- The software has the functions of editing and modifying the chemical composition process library file, creating new monitoring, opening and closing documents, printing and setting functions
Shantanu Shukla –

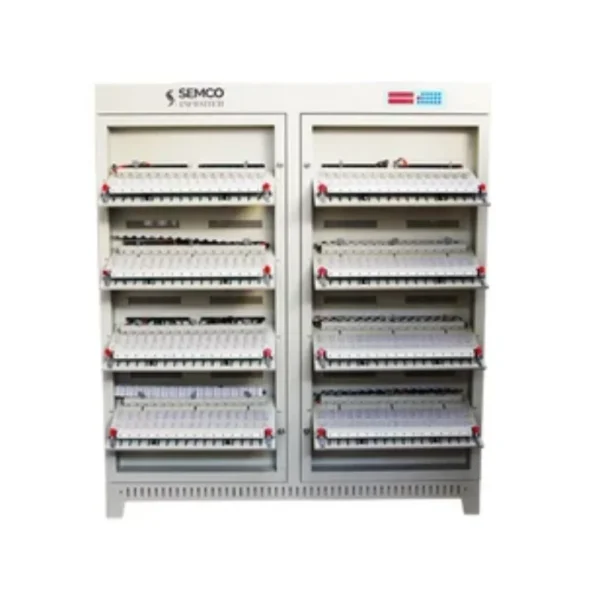

I recently tested the “5V 20A 192CH-Regenerative” cell grading machine, and I found it to be highly efficient and practical for handling various types of cells. The 192-channel version, allows for simultaneous grading, which speeds up the process significantly compared to manual methods. The regenerative feature is a standout, as it helps save on energy costs and promotes environmental sustainability by reusing energy during operation. While setup and calibration can be time-consuming initially, the intuitive interface makes day-to-day operation straightforward. Overall, these machines are a solid choice for anyone needing efficient and eco-friendly cell grading equipment.
