5CH Sorting Machine 33140

Technical Excellence

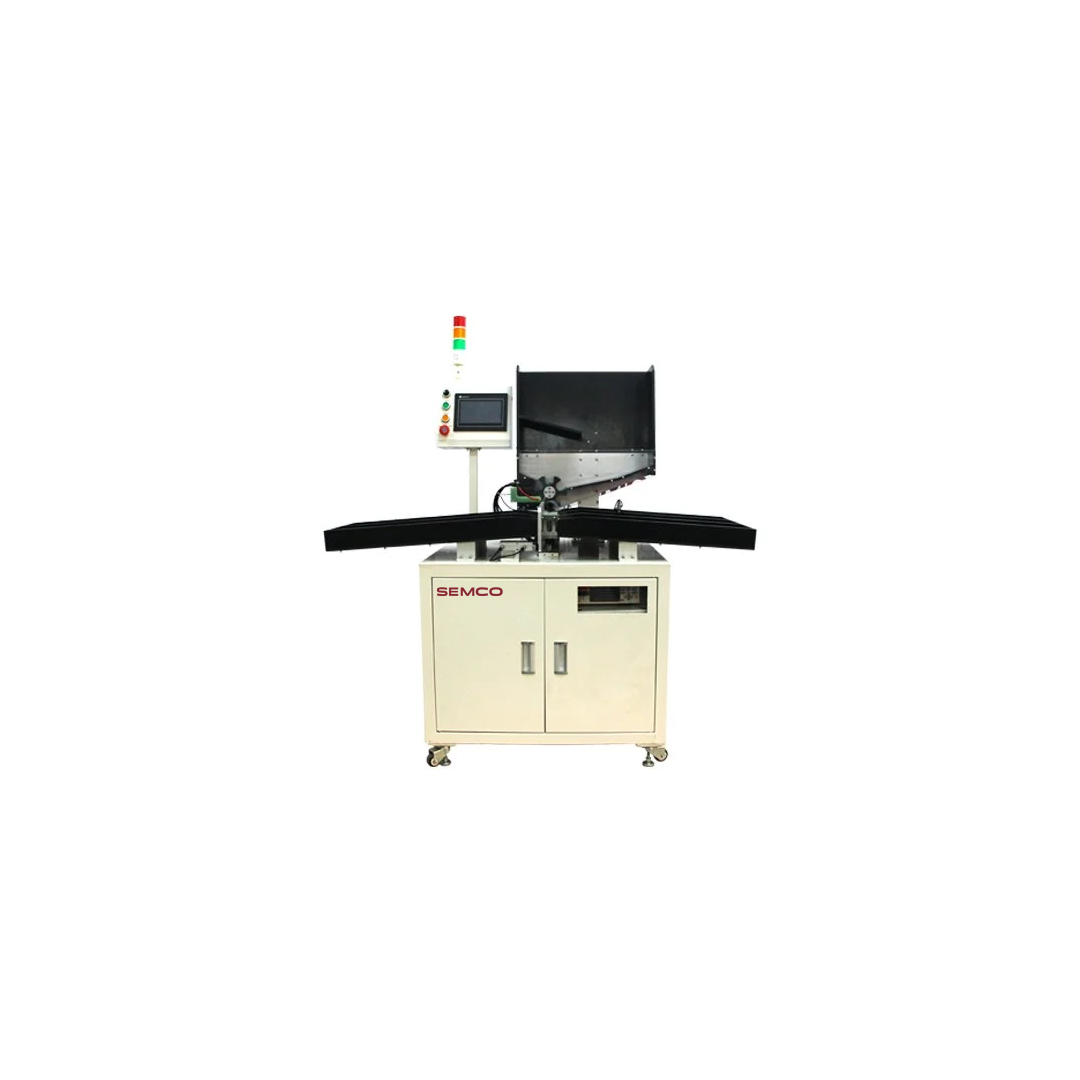

5CH Sorting Machine – 33140

The 5CH Sorting Machine for 33140 cells is a practical and cost-effective solution for manufacturers requiring reliable sorting with simple operation and low system complexity. Designed around manual feeding and manual receiving, this machine is ideal for workshops, pilot lines, and controlled-volume production environments.

Batteries are manually loaded into the feeding hopper and tested one cell at a time to ensure accurate measurement and classification. The sorting process is driven by a stepper motor combined with a pneumatic cylinder, which precisely indexes each battery and pushes it into the designated receiving gear. This controlled mechanical movement ensures consistent sorting without collision or misplacement.

Powered by a Xinjie PLC and a 15-inch touch screen HMI, the system provides clear visualization, intuitive operation, and stable control. With five manual receiving grades, operators can easily manage output classification while maintaining high process transparency and reliability.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

  • Dedicated design for 33140 cylindrical batteries, ensuring stable handling and alignment
  • Manual feeding and 5-grade manual receiving, ideal for flexible, low-volume operations
  • Single-cell test station for accurate and controlled sorting results
  • Stepper motor + pneumatic cylinder sorting mechanism for precise grid-by-grid movement
  • Xinjie PLC with 15-inch touch screen interface for intuitive control and real-time operation

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Product Name

Description

5CH Sorting Machine – 33140
  • Feeding Method: Manually load the battery to the feeding hopper
  • Receiving Method: 5 grades of manual receiving
  • Test Station: Test 1 battery at a time
  • Sorting Method: The stepper motor moves the battery one grid at a time, and the cylinder pushes the battery to the receiving gear
  • Sorting System: Xinjie PLC+15-inch touch screen

Applications

This product is used for:

  • Lithium-ion battery assembly and production units
  • EV battery manufacturing facilities
  • QC and testing labs
  • R&D facilities
  • OEM and contract manufacturing plants
