Temperature Test Chamber

Temperature Test Chamber

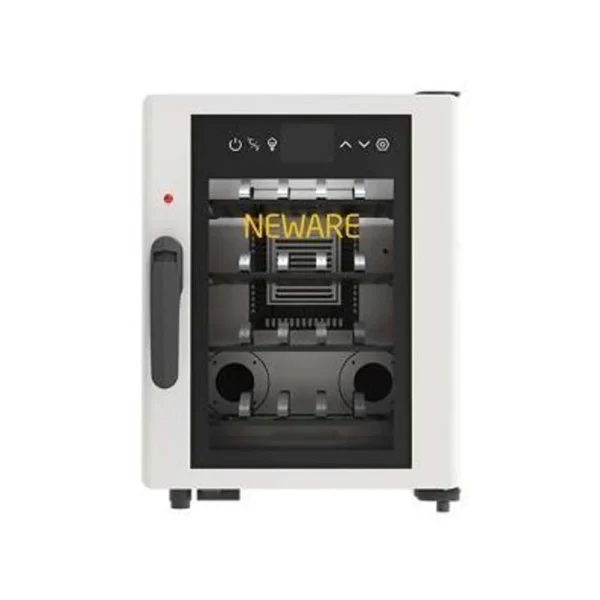

The MHW-25-S Constant Temperature Test Chamber (25L) is a compact, high-precision solution designed for small pouch cells and coin cell temperature testing. With an internal volume of 25L and an inner size of W280 × D250 × H360 mm, it delivers stable and uniform conditions in a small footprint, ideal for labs with limited space. Operating in the 0℃ to 60℃ range, the chamber ensures excellent stability with temperature fluctuation ≤1℃ and temperature deviation ±2.0℃ (no load, stable state).

Built with a stainless steel SUS304 inner chamber and a cold-rolled steel outer body with sprayed finish, it offers durability and corrosion resistance. The 50 mm polyurethane foam insulation enhances thermal efficiency, maintaining consistent conditions while reducing energy loss. Heating from 25℃ to 60℃ within 30 minutes and cooling from 25℃ to 0℃ within 50 minutes, it provides rapid temperature transitions for efficient test cycles. Combined with an axial flow fan, evaporator and heater, the MHW-25-S ensures uniform airflow, making it a reliable choice for battery R&D labs focused on safety, repeatability, and controlled temperature testing. Note: the chamber is not suitable for flammable, explosive, corrosive, radioactive, highly toxic, or strong electromagnetic emission samples.

Feature highlights

# Feature Description
1 Application Designed for constant temperature tests of small pouch cells and coin cells
2 Internal Volume 25L capacity, optimized for small-scale battery testing
3 Temperature Range 0℃ ~ 60℃ working range for typical battery evaluation conditions
4 Temperature Stability Fluctuation ≤1℃, deviation ±2.0℃ (no load, stable) for reliable, repeatable results
5 Heating & Cooling Performance 25℃→60℃ ≤ 30 min, 25℃→0℃ ≤ 50 min for efficient test cycling
6 Construction Materials SUS304 stainless steel inner chamber, cold-rolled steel outer shell with spray coat
7 Thermal Insulation 50 mm polyurethane foam for high thermal efficiency and reduced energy loss
8 Airflow System Axial flow fan + evaporator + heater for uniform temperature distribution
9 Compact Footprint Outer size W360 × D450 × H470 mm, net weight ~40 kg, ideal for bench-top use
10 Safety Sample Limitations Not for flammable, explosive, corrosive, radioactive or highly toxic materials

Inquire Now

Categories: , , Tags: , , , , , , , , , , , , ,

Description

Sample limit ·        This Temperature Test Chamber is prohibited: Testing or storage of flammable, explosive, volatile materials;

·        Testing or storage of corrosive substance samples; Testing or storage of samples of strong electromagnetic emission;

·        Testing and storage of radioactive material samples;

·        Testing and storage of highly toxic substances;

·        Testing or storage of specimens that may produce above substances or objects during testing or storage.
Volume and size
Nominal internal

volume

 25L
Inner size W280 mm×D250 mm×H360 mm
Outer dimension W360 mm×D450 mm×H470 mm
Net weight Around 40kg
Performance
Environmental conditions Environmental temperature: +25℃ Relative humidity≤85%

no test samples in the test chamber (no load)
Temperature

range

 0℃～60℃
Temperature fluctuation ≤1℃（No load, stable temperature）
Temperature deviation ±2.0℃（No load, stable temperature）
Heating time 25℃→60℃ ≤ 30 min
Cooling time 25℃→0℃ ≤ 50 min
Structure
Insulation Outer wall material: high quality cold rolled steel plate, surface sprayed and painted;
Envelope Inner wall material: stainless steel plate SUS304;

Chamber insulation material: polyurethane foam (thickness of 50mm)
Air conditioning Axial flow fan, evaporator, heater
