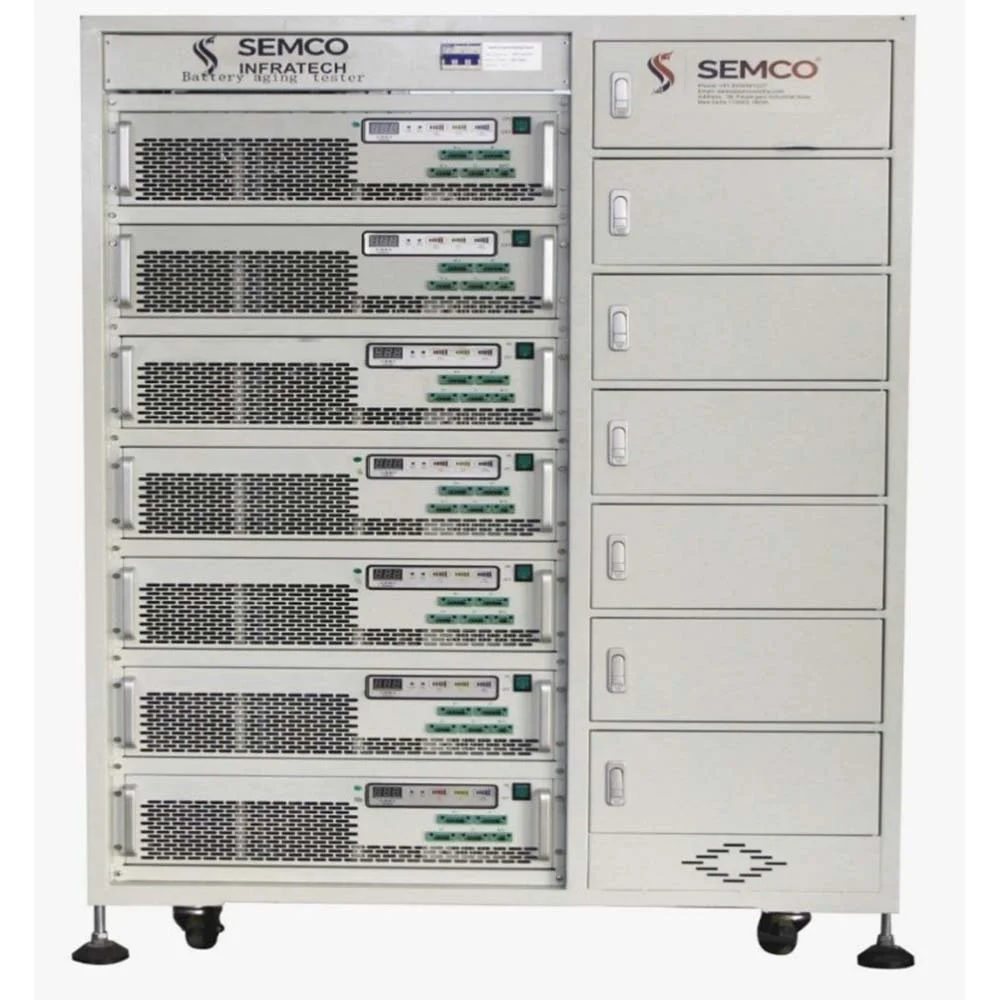

Battery Charging Discharging System 100V (10/20A) 7CH


Also Available in: Standalone

Input power AC 220V ±10% / 50Hz
Voltage Measuring range 9~100V
Precision ± (0.2% of reading + 0.2% of range)


Charging range 50~10000mA
Charging accuracy ± (0.2% of reading + 0.2% of range)
Discharge range 50~25000mA
Precision ± (0.2% of reading + 0.2% of range)

Inquire Now
Please enable JavaScript in your browser to complete this form.


Recharge Constant voltage cut-off current 50mA minimum
Capacity Precision ±1‰
Total Power consumption 14kw
Time Inspection time Receive real time <2S
Timing range 0~999 hours/step
Data logging interval ≥5S
Mid-range version 1.1 series
Recharge Charging mode Constant current and constant voltage charging
Cut-off condition Voltage, current, relative time, overcharge protection
Discharge Discharge mode Constant current discharge
Cut-off condition Voltage, relative time, over-discharge protection


Cycle measurement range 1~999 times
Number of steps in a single cycle 100
Voltage and current detection sampling Four-wire sampling
Database Use SQL database to manage test data
  Based on TCP/IP protocol, serial port
Data output method EXCEL, TXT, chart
Communication interface Network port
Number of channels per cabinet 7 Channel, 7Line 1Column
