Pouch Cell Grading Machine ( 5V 3A 512CH )

Technical Excellence

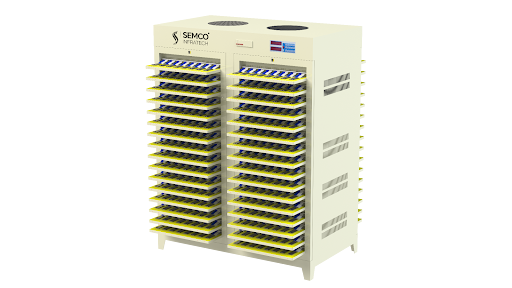

High-Capacity Pouch Cell Grading Machine (512 Channels)

The Pouch Cell Grading Machine is engineered for high-volume grading and sorting of pouch lithium battery cells in production environments. Featuring a total of 512 independent channels, the system adopts a structured cabinet design with 4 doors and 16 layers, enabling efficient space utilization and easy access during operation and maintenance. Each layer is precisely dimensioned to accommodate pouch cells with stable positioning, while the automatic motor-driven opening and clamping mechanism ensures consistent contact pressure and reliable electrical connection. With carefully optimized top and bottom working heights, the system improves operator ergonomics and supports safe, efficient large-scale grading workflows in lithium battery manufacturing lines.

Line Speed

6m / 7m / 8m

Dimensions

40 ft – 200 ft

Power Requirement

20 kW – 200 kW

Key Fixture Features

  • Ultra-high channel capacity with 512 channels for large-scale pouch cell grading
  • Automatic motorized clamping system for stable, repeatable cell fixation
  • Optimized cabinet structure with 4 doors and 16-layer layout for efficient operation
  • Uniform layer design with 89 mm spacing for consistent cell placement
  • Ergonomic working heights to improve safety and operator convenience
  • Cell Aging Machine
  • Battery Pack Tester
  • LOCV Sorting
  • Module Stacking
  • Compression
  • Laser Cleaning
  • Polarity & CCD Tester
  • Laser Welding
  • Module EOL Test
  • Pack Line

Cell Aging Machine

Cell Aging Machines are designed to stabilize lithium-ion cells through controlled charge and discharge cycles, validating capacity, voltage consistency, and thermal behavior before assembly.

Battery Pack Tester

Battery Pack Testers perform complete electrical and safety validation, including voltage, current, insulation resistance, and protection checks.

LOCV Sorting

LOCV Sorting machines measure open circuit voltage to group cells with consistent electrical characteristics, improving performance and lifespan.

Module Stacking

Module Stacking systems precisely align and stack battery cells into mechanically stable modules for downstream processing.

Compression

Compression machines apply uniform pressure to enhance module strength, thermal contact, and long-term durability.

Laser Cleaning

Laser Cleaning removes oxides and contaminants from battery tabs and terminals, ensuring clean, high-quality welding surfaces.

Polarity & CCD Tester

Vision-based polarity and CCD inspection detects alignment errors, defects, and missing components early in the process.

Laser Welding

Laser Welding machines deliver precise, repeatable, high-strength joints with minimal heat impact.

Module EOL Test

End-of-Line testing validates electrical, functional, and safety performance before pack integration.

Pack Line

The Pack Line integrates final assembly, enclosure installation, and testing for scalable battery production.

Request a Quote

Looking for the right solution? Our experts are here to guide you with specifications, customization options, and pricing details.

Overview

This equipment is designed to support efficient and accurate battery assembly and testing workflows. With durable construction, precision control, and user-friendly operation, it delivers consistent performance for both small-scale and large-scale production environments.

Suitable for industries such as:

EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.

Product Specifications

This equipment is designed to support efficient and accurate battery assembly and testing workflows. With durable construction, precision control, and user-friendly operation, it delivers consistent performance for both small-scale and large-scale production environments.

Product Name

Description

High-Capacity Pouch Cell Grading Machine (512 Channels)

Applications

This product is used for:
  • Lithium-ion battery assembly and production units
  • EV battery manufacturing facilities
  • QC and testing labs
  • R&D facilities
  • OEM and contract manufacturing plants

Support & Warranty

The product comes with a dedicated support and service package that includes activation, calibration assistance, and post-installation guidance.

  • Standard warranty period
  • Spare part availability details
  • On-site / online installation support
  • AMC (Annual Maintenance Contract) option
  • Technical support contact email
