Four-channel battery charge–discharge system for 0–120 V packs up to 6 kW per channel (24 kW total). Delivers ≥92% efficiency, PF ≥0.99, and ±0.05% FS accuracy with 1 mV / 1 mA resolution. Supports CC/CV/CCCV/CR/CP/DC/DP/DR/DCIR, up to 2000 steps, 65,535 cycles and 5-level nested loops, 10 ms current response, rich AC/DC/battery protections, NTC temperature channels, barcode binding, and TCP/IP + CAN/485 communication with Excel/CSV export.

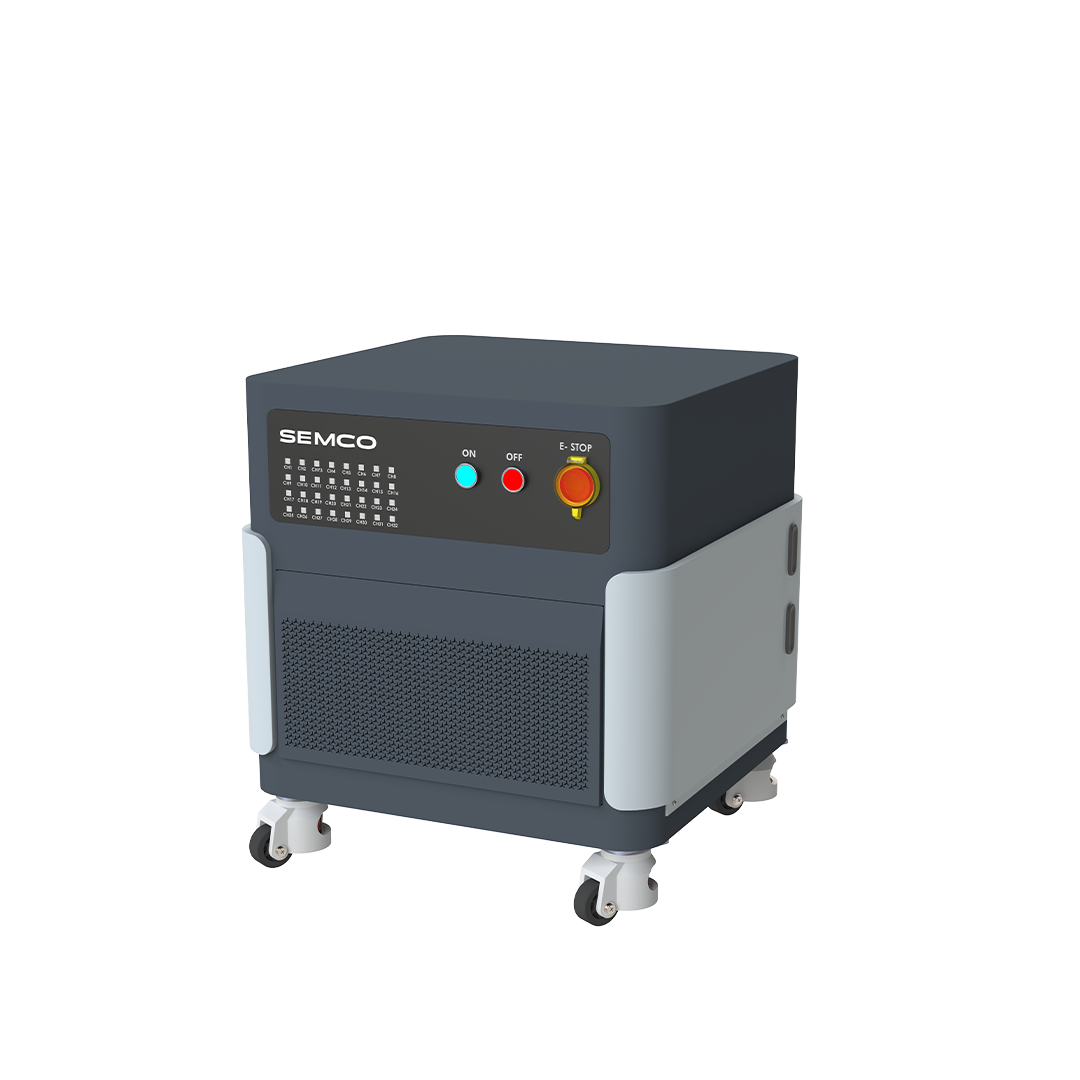

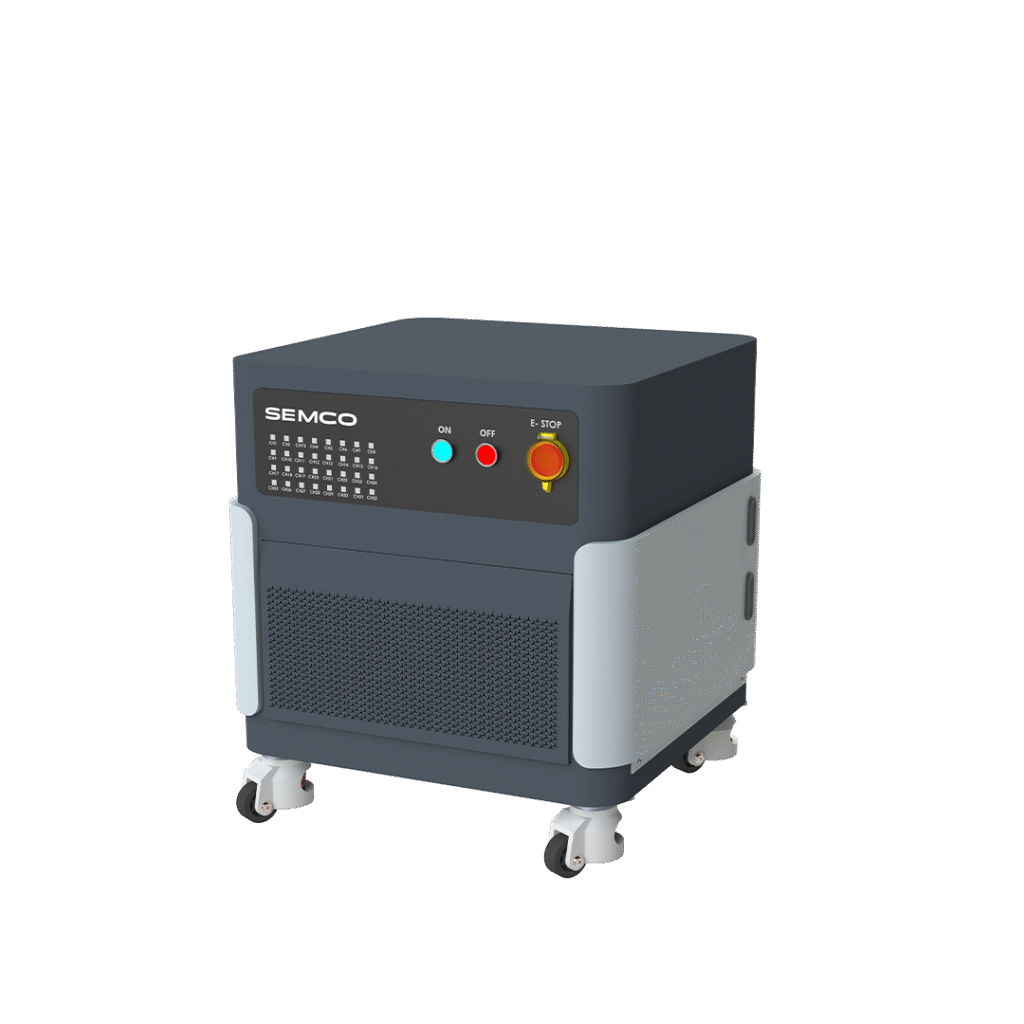

The Semco SI-Z BCDS 120V 50A 4CH is a high-precision, energy-feedback test system for cycle life, capacity, efficiency and DCIR testing of lithium and other battery packs. Operating from AC 380 V ±10%, it delivers 24 kW total output (6 kW per channel) with overall efficiency ≥92%, PF ≥0.99 and THD ≤5%, while keeping noise below 75 dB and protection level at IP20 with forced-air cooling.
On the DC side, each channel supports 0–120 V charging, 6–120 V discharging with –100~100 A current range, ±0.05% FS accuracy and 1 mV / 1 mA resolution. Fast dynamics are ensured by a 10 ms current response (10–90% FS) and 20 ms charge–discharge transition, and all channels are independently controllable. Integrated NTC auxiliary channels measure –30~120 °C with 0.1 °C resolution for precise thermal tracking.
| Item | Specification |
|---|---|
| Channels | 4 CH (system model 120 V / 50 A class) |
| Single-channel power | 6 kW (24 kW total) |
| Voltage range | Charge 0–120 V, Discharge 6–120 V |
| Current range | –100 A to 100 A |
| Accuracy / Resolution | ±0.05% FS, 1 mV / 1 mA |
| Min record interval | 10 ms (supports ΔV, ΔI) |
| Steps / Cycles | 2000 steps, 65,535 cycles, 5-level nesting |
| Temp channels | NTC –30~120 °C, ±2 °C, 0.1 °C |
The system supports standby, CC, CV, CCCV, CR, CP, DC, DP, DR and DCIR working modes with multi-condition cut-off (voltage, current, capacity, energy, time, power, cycle count, BMS data and custom logic). Communication is via TCP/IP host link plus Ethernet/CAN/485 with DBC import, enabling tight integration with BMS. Test data are stored in .bts database format, with tree-view browsing (cycle/step/record layers) and Excel/CSV export. Advanced protections cover grid, DC bus and battery side, including power-off data protection, breakpoint resume and historical file–based channel migration for long-term, high-reliability laboratory and production applications.
Semco SI-Z BCDS 120V 50A 4CH , a cutting-edge, dust-proof Battery Charge-Discharge System designed for precise and reliable battery testing. Whether you’re conducting cycle life tests, capacity tests, or performance evaluations, this system ensures accurate results for battery pack assessments.
