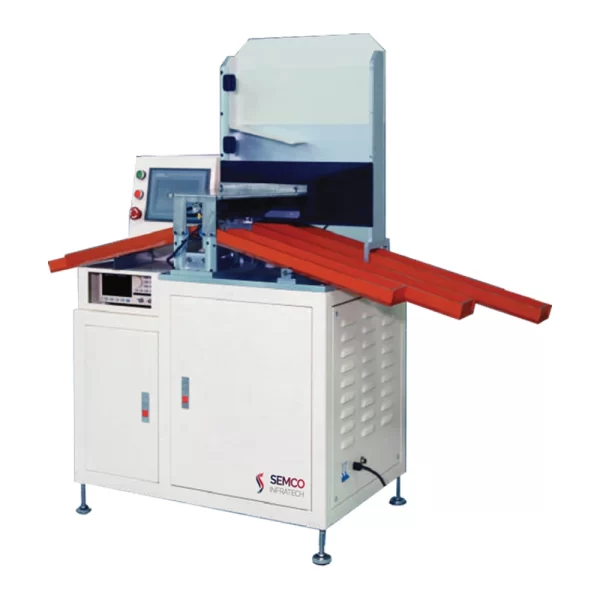

A compact and efficient 5-channel cylindrical battery sorting machine designed for accurate voltage-based classification, high qualification rates, and stable performance in small to mid-scale production environments.
The 5CH Sorting Machine is a practical and reliable solution for sorting finished cylindrical lithium battery cells, supporting a wide range of formats including 18650, 21700, 26650, 26700, 32650, and 32700. Designed for manufacturers seeking efficiency with a smaller footprint, this system delivers consistent sorting accuracy while maintaining high utilization and yield rates.
The machine performs sorting based on open circuit voltage (OCV) and AC internal resistance parameters (external meter required), ensuring cells are grouped according to electrical consistency before downstream assembly or grading. With a qualification rate of ≥99.5% and an equipment utilization rate of ≥98%, it provides dependable output suitable for daily production use.
Constructed with thick cold-rolled steel plates and aluminum profile framing, the system offers excellent mechanical strength and long service life. The real-time gear counting display allows operators to monitor output instantly, improving process visibility and operational control. Its balanced design makes it ideal for workshops, pilot lines, and controlled-volume battery manufacturing setups.
Cell Aging Machines are designed to stabilize lithium-ion cells through controlled charge and discharge cycles, validating capacity, voltage consistency, and thermal behavior before assembly.
Battery Pack Testers perform complete electrical and safety validation, including voltage, current, insulation resistance, and protection checks.
LOCV Sorting machines measure open circuit voltage to group cells with consistent electrical characteristics, improving performance and lifespan.
Module Stacking systems precisely align and stack battery cells into mechanically stable modules for downstream processing.
Compression machines apply uniform pressure to enhance module strength, thermal contact, and long-term durability.
Laser Cleaning removes oxides and contaminants from battery tabs and terminals, ensuring clean, high-quality welding surfaces.
Vision-based polarity and CCD inspection detects alignment errors, defects, and missing components early in the process.
Laser Welding machines deliver precise, repeatable, high-strength joints with minimal heat impact.
End-of-Line testing validates electrical, functional, and safety performance before pack integration.
The Pack Line integrates final assembly, enclosure installation, and testing for scalable battery production.
EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.
This equipment is designed to support efficient and accurate battery assembly and testing workflows. With durable construction, precision control, and user-friendly operation, it delivers consistent performance for both small-scale and large-scale production environments.
Product Name
Description

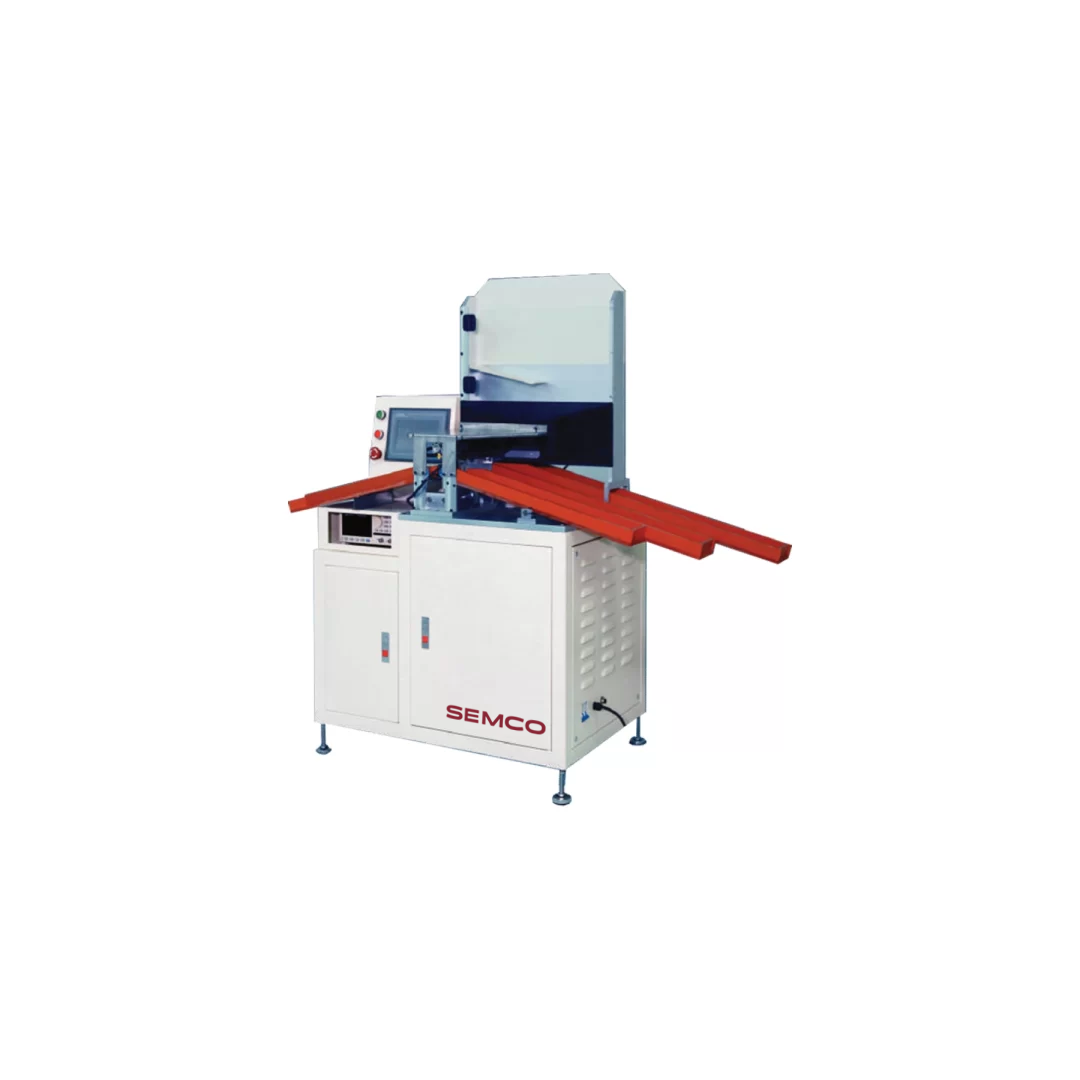

Key Features of 5CH Sorting Machine 18650 / 21700 / 26650 / 26700 / 32650 / 32700
The product comes with a dedicated support and service package that includes activation, calibration assistance, and post-installation guidance.
A compact and efficient 5-channel cylindrical battery sorting machine designed for accurate voltage-based classification, high qualification rates, and stable performance in small to mid-scale production environments.
