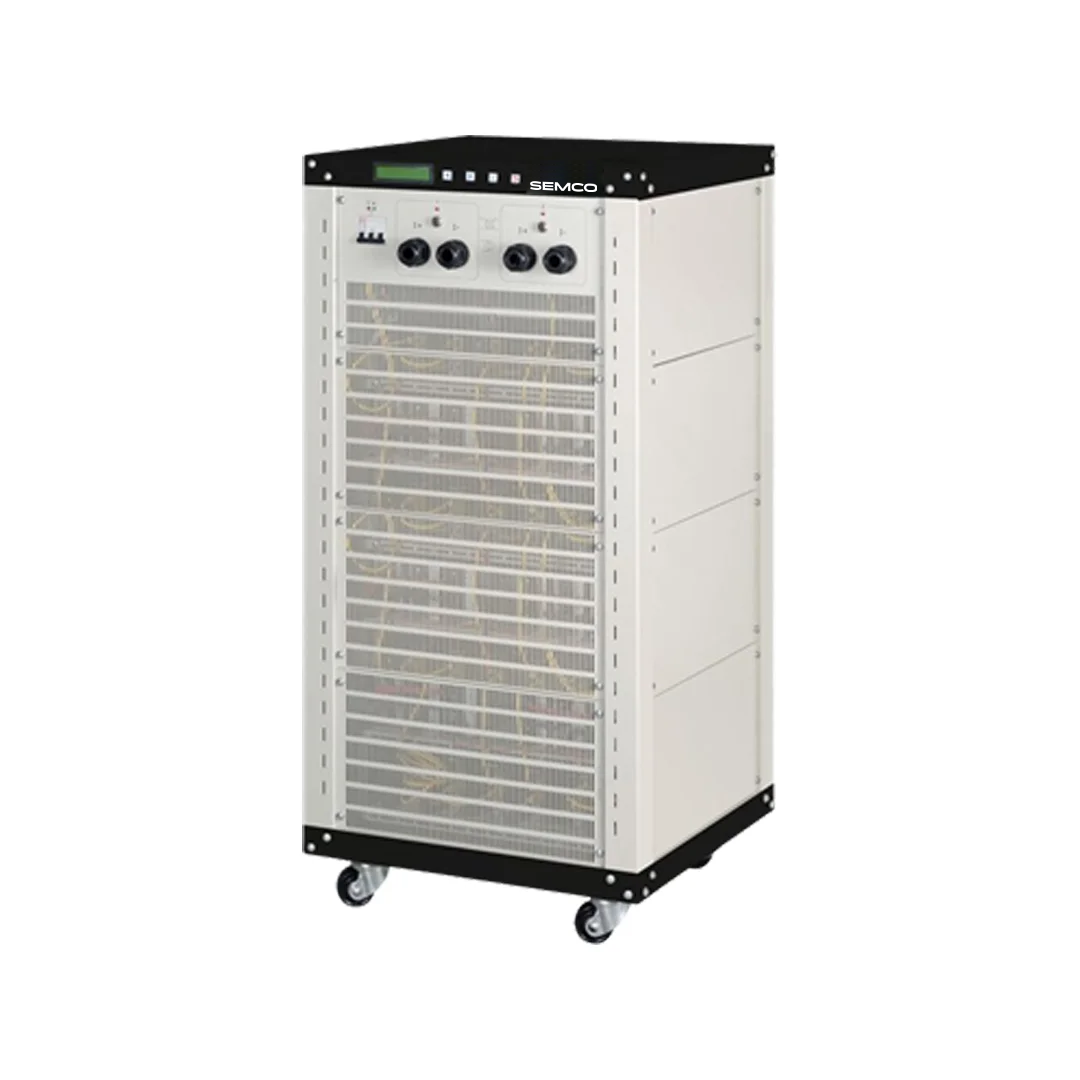

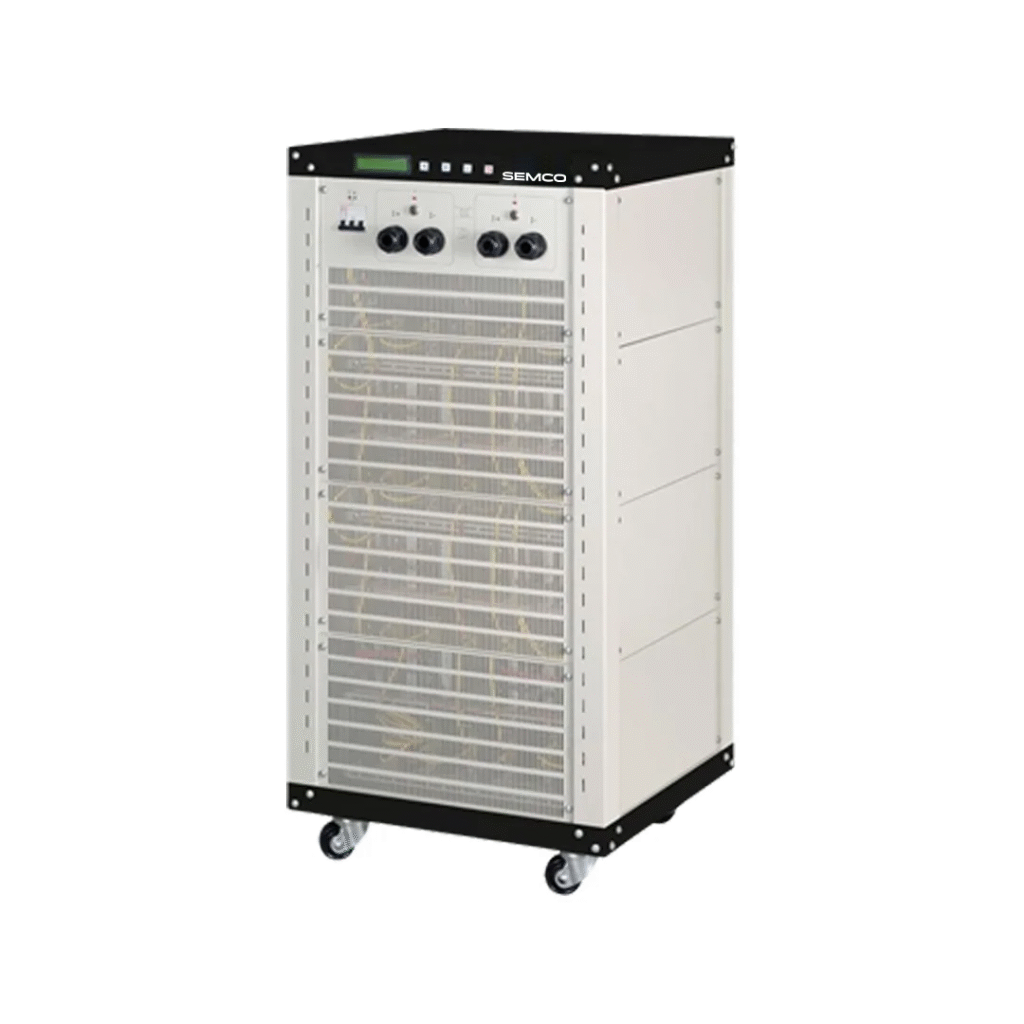

The Neware Cell Tester 5V 100A 16CH is a robust battery testing system engineered for demanding high-current applications involving lithium power cells and modules. Supporting a wide range of configurations—from multi-channel low-current setups to heavy-duty channels up to 800A—it provides the flexibility required across research, validation, and production environments. With accurate control over charge and discharge processes, advanced test modes, and fast dynamic response, the system enables detailed evaluation of efficiency, cycle life, and performance characteristics. High-resolution data logging, pulse testing, and DCR calculation further enhance analytical capability. Beyond hardware, Semco delivers complete testing solutions, including proper range selection, system integration, and long-term technical support—ensuring reliable, scalable, and production-ready battery testing infrastructure.
Cell Aging Machines are designed to stabilize lithium-ion cells through controlled charge and discharge cycles, validating capacity, voltage consistency, and thermal behavior before assembly.
Battery Pack Testers perform complete electrical and safety validation, including voltage, current, insulation resistance, and protection checks.
LOCV Sorting machines measure open circuit voltage to group cells with consistent electrical characteristics, improving performance and lifespan.
Module Stacking systems precisely align and stack battery cells into mechanically stable modules for downstream processing.
Compression machines apply uniform pressure to enhance module strength, thermal contact, and long-term durability.
Laser Cleaning removes oxides and contaminants from battery tabs and terminals, ensuring clean, high-quality welding surfaces.
Vision-based polarity and CCD inspection detects alignment errors, defects, and missing components early in the process.
Laser Welding machines deliver precise, repeatable, high-strength joints with minimal heat impact.
End-of-Line testing validates electrical, functional, and safety performance before pack integration.
The Pack Line integrates final assembly, enclosure installation, and testing for scalable battery production.
EV battery production, energy storage manufacturing, battery research labs, electronics assembly, and OEM-based fabrication units.
This equipment is designed to support efficient and accurate battery assembly and testing workflows. With durable construction, precision control, and user-friendly operation, it delivers consistent performance for both small-scale and large-scale production environments.
Product Name
Description
The Neware Cell Tester 5V 6A–30A 8CH–32CH is a high-precision system for lithium cell R&D, pilot lines, and production QA. With configurations from 8 to 32 channels and a standalone option, it covers everything from coin/small pouch cells to higher-capacity cylindrical and prismatic cells.
It operates on AC 220V/110V ±10%, using 24-bit AD / 16-bit DA and ≥1MΩ input impedance for low-noise, accurate measurement. The tester adopts an independent CC/CV closed-loop structure, ensuring highly stable control for formation, cycle life, and rate tests.
Voltage range is 25 mV–5 V, with minimum discharge 1.0 V (universal holder) / 1.5 V (2 m cable) and ±0.05% FS accuracy and stability. Current has three ranges (0.5 mA–100 mA, 100 mA–3 A, 3 A–6 A) with ±0.05% FS accuracy, supporting both low-current precision tests and higher-rate cycling. Each channel delivers 30 W, ideal for small to medium cells used in EV sub-packs, power tools, and ESS modules.
Fast <1 ms response time enables dynamic and pulse profiles. Data is logged every 100 ms (10 Hz) with fine thresholds for voltage and current change, enabling detailed degradation and IR analysis. The system supports CC, CV, CCCV, CP, CR, -ΔV cut-off, pulse testing (500 ms min), automatic charge–discharge switching, DCIR calculation, and up to 65,535 cycles / 254 steps / 3-level nesting.
Backed by Semco’s application support, calibration, and after-sales service, this platform combines lab-grade accuracy with production robustness, giving you a serious, scalable testing backbone instead of just another spec-sheet tester.
Key Specs
| Spec | Value |
|---|---|
| Voltage range | 25 mV–5 V |
| Current ranges | 0.5 mA–6 A (3 ranges) |
| Channels | 8–32 CH |
| Per channel power | 30 W |
| Voltage accuracy | ±0.05% FS |
| Current accuracy | ±0.05% FS |
| Response time | <1 ms |
| Data interval | 100 ms (10 Hz) |
| Max cycles / steps | 65,535 / 254 |
| Modes | CC, CV, CCCV, CP, CR, Pulse |
Also Available in: Standalone
| Input AC | AC 220V/110V ±10% / 50Hz |
| Resolution | AD：24bit；DA：16bit |
| Input Impedance | ≥1MΩ |
| Input Power | 425W |
The product comes with a dedicated support and service package that includes activation, calibration assistance, and post-installation guidance.
