Eight-channel tester for storage batteries with 7.3–23 V CCCV charging and 0.5–50 A programmable discharge. Delivers up to 690 W charge / 1000 W discharge per channel, supports float charging logic, independent channel control, 4-wire sampling, multi-condition cut-off, full protection (reverse, OVP, OTP, short-circuit) and TCP/IP–based PC software with Excel report output.

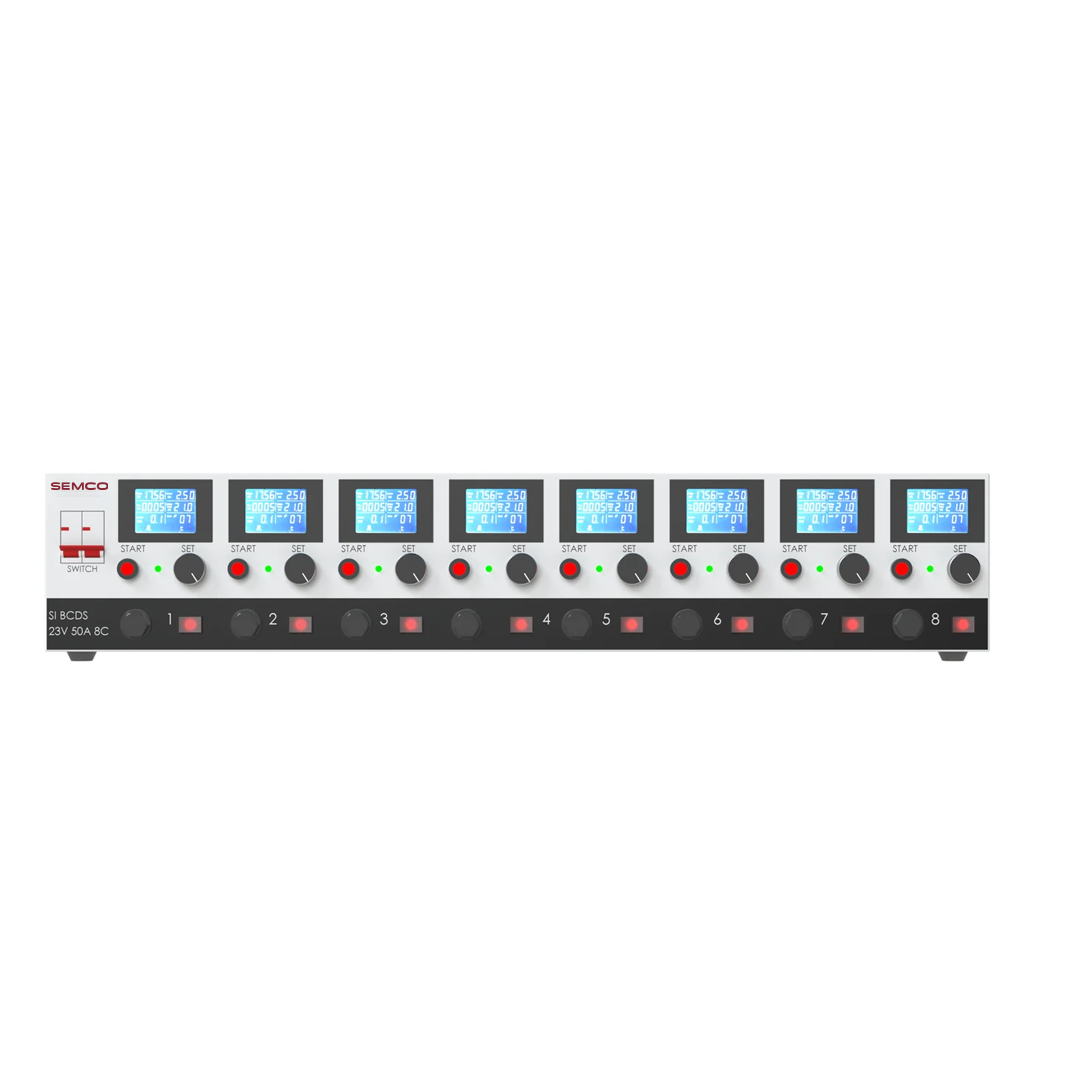

The Semco SI BCDS 23V 50A 8CH is a high-current, multi-channel storage battery charge–discharge tester designed for demanding applications where precise control and repeatability are critical. Each of the 8 independent channels supports 7.3–23 V constant-voltage charging (0.1 V step) and 2–20 V discharge cut-off, with tight tolerances of ±0.03 V to ensure accurate voltage control throughout the test process.
On the current side, the system provides 0.5–30 A adjustable charge current and 0.5–50 A adjustable discharge current with 0.1 A resolution and ±0.03 A accuracy, delivering up to 690 W charge power and 1000 W discharge power per channel. This makes it suitable for larger-capacity storage batteries where higher current and power levels are essential for realistic charge–discharge profiling.
The tester supports constant-current & constant-voltage (CC/CV) charging and constant-current discharge, with flexible cut-off conditions based on voltage, current, time and capacity. A built-in float charge conversion function automatically switches to trickle charging once the constant-voltage phase reaches 3.5 hours or the current drops to 0.3 A, matching typical storage battery charging requirements.
Key protections include power-down data protection, reverse connection, over-temperature, over-voltage and short-circuit protection, plus AC1000V/2 min insulation between channels for electrical safety. Data recording can be triggered by time, voltage or current intervals, and all results are managed via a TCP/IP (LAN) host communication interface with Excel report output, compatible with Windows XP and above. With 4-core wire sampling, low noise (<76 dB), IP20 rating, compact 900×350×180 mm housing, and clip-type fixtures for 8 batteries, the Semco SI BCDS 23V 50A 8CH offers a robust, production-ready platform for reliable charge–discharge and cycle testing.
| Parameter | Specification |
|---|---|
| Model | Semco SI BCDS 23V 50A 8CH |
| Channels | 8 (independent control) |
| Charge Voltage Range | 7.3–23 V, 0.1 V step, ±0.03 V |
| Discharge Cut-off Voltage | 2–20 V, 0.1 V step, ±0.03 V |
| Charge Current Range | 0.5–30 A, 0.1 A step, ±0.03 A |
| Discharge Current Range | 0.5–50 A, 0.1 A step, ±0.03 A |
| Max Charge Power (per channel) | 690 W |
| Max Discharge Power (per channel) | 1000 W (resistor heating power) |
| Cycle Index | 1–16 times |
| Communication | TCP/IP (LAN), Excel report output |
| Protection | Power-down, reverse, OVP, OTP, short-circuit |
| Product Size | 900 × 350 × 180 mm |
Semco SI BCDS 23V 50A 8CH , a high-precision Storage Battery Charge Discharge Tester designed for efficient testing and performance evaluation of battery cells. This advanced system supports 8 channels, allowing simultaneous testing of multiple batteries with high accuracy.
