6CH MFSM 33145-40140
- Sorting data settings
- Sorting template generation
- Sorting record query
- Idle times setting
- Compensation value setting
| The Number of Sorting Stalls | 6 stalls (5 good stalls, 1 NG gear) |
| Sorting Efficiency | 50-60PPM |
| Applicable Battery Specifications | 18-40MM, length: 135-140MM intervals can be applied |

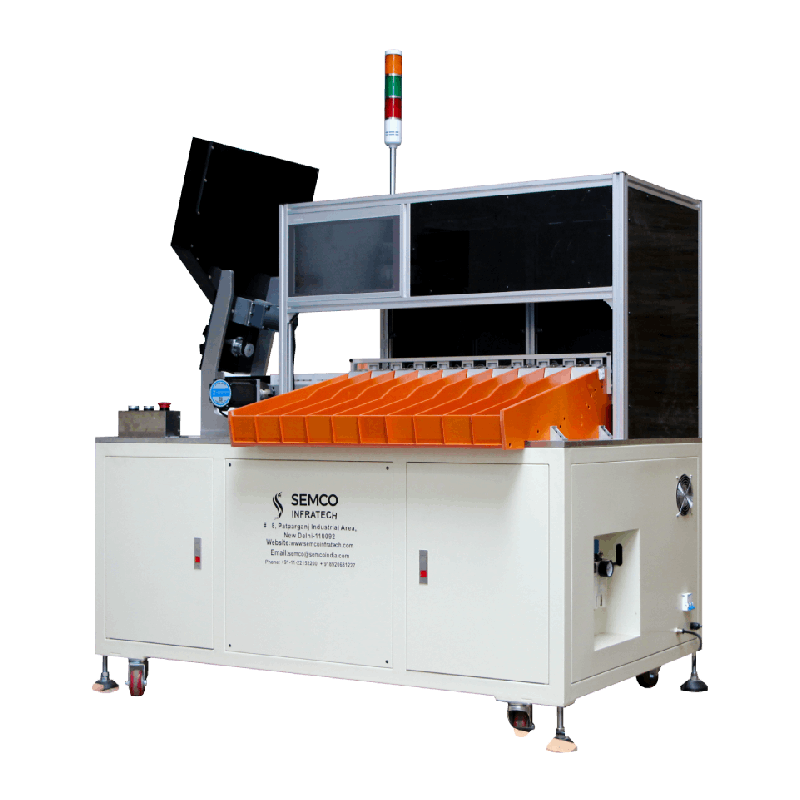

All in One Sorting Machine
- Voltage Internal Resistance Test
- Barcode Scanning
- Ten-level Sorting
- Sorting efficiency: ≥2800 pieces/hour
| Working Voltage | AC 220V±10%/50Hz, power: ≤1.5 KW |
| Sorting Efficiency | ≥ 45PPM |
| Adapt to Battery Specifications | 33140/32142/40135 finished battery cells |
| Dimensions | 1500 (length) × 900 (width) × 1600 (height) mm |
Battery Charging Discharging Machines
- Input Power AC380V±15% 50/60±5Hz
- Power Factor ≥99%(Full load)
- THDi ≤5%(Full Load)
- Input Resistance ≥1MΩ
- Input Power 50.8KW
- Input current 77.2A/Single
- Overall System Efficiency (Max) 90%
- Noise ≤65dB
- Voltage and current sampling Four-wire connection (Same Port for Charging and Discharging)
- Power control module type MOSFET
Battery Management System Testers [BMST]
- Short Circuit Protection Test: Refers to the real short circuit protection test microsecond level
- Drop Test: It means that the signal line of a certain section can be detected if it falls off or breaks
- Power Consumption Test: Refers to the true and accurate power consumption of each section
- Equalization Current and Equalization Voltage: Equalization Current and Equalization Voltage
| Input Power Requirement | 180 ~ 240V 50/60 Hz, power: 700W |
| Charge and Discharge Voltage | 5000mV ~ 160000mV |
| Current Accuracy | ± (0.1% FS+0. 1% RD) |
Laser Welding Machines
- Independent research and development design, high precision machine tool, stable and reliable long life
- Equipped with high-response, high-precision servo motors
- International first-class quality fiber laser, industrial application for many years, long life, maintenance-free
- High-precision laser welding head, imported optical lens, fine focus, convenient adjustment, perfect welding
- Operating mode Continuous/modulation
| Rated Output Power | 3000W |
| Center Wavelength (NM) | 1080 |
| Switching Light Time(US) | 20 |
| Frequency (kHZ) | 1000—5000 |
Prismatic and Pouch Cell Grading Machines
Modular manufacturing, strong versatility, convenient and easy maintenance.
The four-wire method is used for measurement to improve the test accuracy.
Working power Three-phase five-wire AC380V±10% 50HZ
| Communication Method | Ethernet/RS485 |
| Charge and discharge | nan |
| Current Range | 100-120000 (mA) |
Cylindrical Cell Grading Machines
Working flow control method Overall machines control
Charges mode Constant current, constant voltage
Charges terminated conditions Voltage, current, time, capacity
Discharges mode Constant current
Discharges terminated Conditions Voltage, time, capacity
